Product Code : 3D-Al2139-CU-PO
Spherical Al2139 Alloy Powder is composed of aluminum, copper, magnesium, and zinc, and is known for its excellent mechanical and physical properties.
Spherical Al2139 Alloy Powder is a high-strength Aluminum Alloy powder used in additive manufacturing processes such as selective laser melting (SLM) and direct energy deposition (DED). The particle size is 15-45μm, 15-53μm, 53-120μm, 53-150μm, or customized.
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Spherical Al2139 Aluminum Alloy Powder Particle Size
0-15μm, 5-25μm, 15-45μm, 15-53μm, 45-75μm, 45-105μm, 75-150μm. (Various granularities can be customized according to customer requirements)

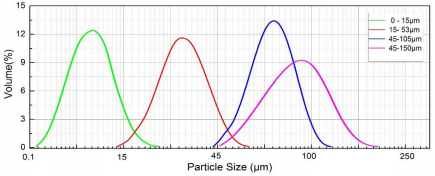

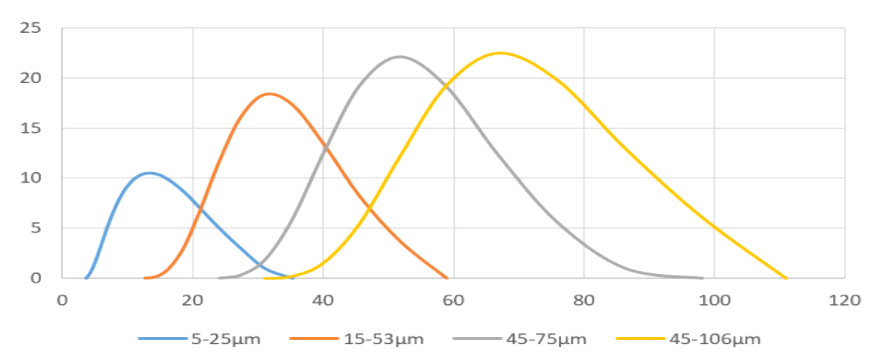

Spherical Al2139 Aluminum Alloy Powder Particle Size Description
● 0-15μm (D10=3~5μm, D50=6~10μm, D90=12~14μm)
● 5-25μm (D10=5~10μm, D50=15~20μm, D90=20~25μm)
● 15-45μm (D10=15~20μm, D50=25~30μm, D90=35~40μm)
● 15-53μm (D10=15~20μm, D50=25~35μm, D90=45~50μm)
● 45-75μm (D10=45~55μm, D50=55~65μm, D90=70~75μm)
● 45-105μm (D10=50~60μm, D50=75~85μm, D90=95~105μm)
● 45-150μm (D10=55~70μm, D50=110~120μm, D90=140~150μm)
● 75-150μm (D10=80~90μm, D50=110~125μm, D90=135~150μm)
Spherical Al2139 Alloy Powder Specifications
Product | Chemical Composition（wt%） | ||||||||||
| Al | Cu | Mg | Ag | Mn | Zn | Si | Fe | Cr | V | Others | |
| Al2139 | Balance | 4.5-5.5 | >0.8 | 0.15-0.6 | 0.2-0.6 | <0.25 | <0.1 | <0.15 | <0.05 | <0.05 | <4 |
| Particle Size (μm) | 15-45μm, 15-53μm, 53-120μm, 53-150μm, or customized. | ||||||||||
Spherical Al2139 Alloy Powder Properties

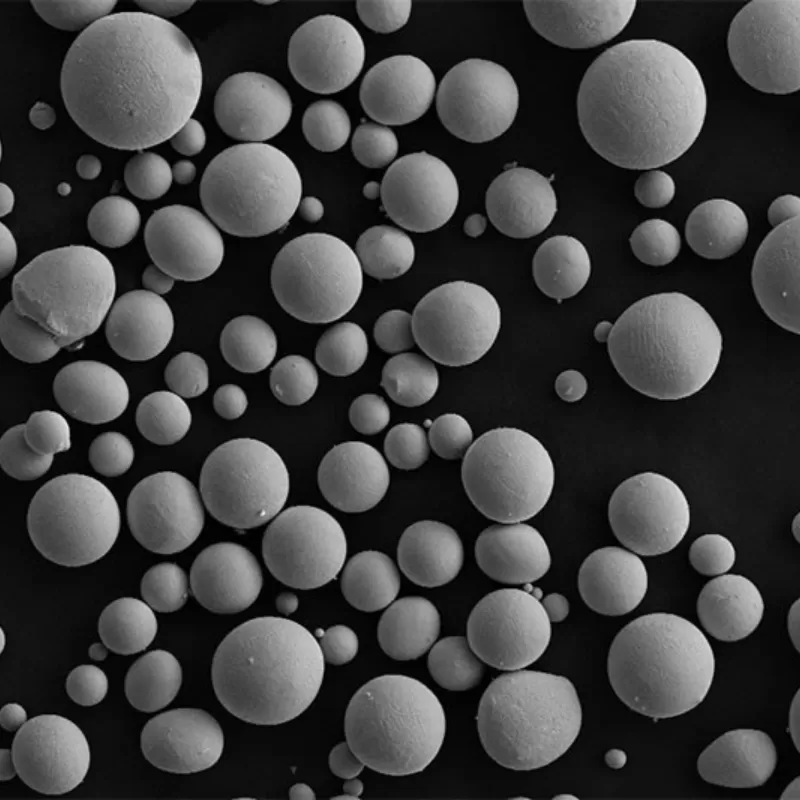

High powder sphericity
Smooth surface
Fewer satellite balls
Low oxygen content
Uniform particle size distribution
Good fluidity
High bulk density and tap density
Spherical Al2139 Aluminum Alloy Powder Applicable Processes
Laser/electron beam additive manufacturing (SLM/EBM), laser direct deposition (DLD), powder thermal and other static pressure forming (HIP), metal injection forming (MIM), powder metallurgy (PM), laser melting application (LC), etc.
Spherical Al2139 Alloy Powder Applications
Used to produce lightweight, high-strength components for the aerospace industry.
Used in the defense industry.
Used in the automotive industry for producing complex structural components that require a high strength-to-weight ratio.
Used to produce various components for industrial machinery that require high strength and good corrosion resistance.
Packing of Spherical Al2139 Aluminum Alloy Powder
Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 440 gallon liquid totes Special package is available on request.
ATTs’Spherical Al2139 Aluminum Alloy Powder is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
