Product Code : 3D-NiW-CU-PO1

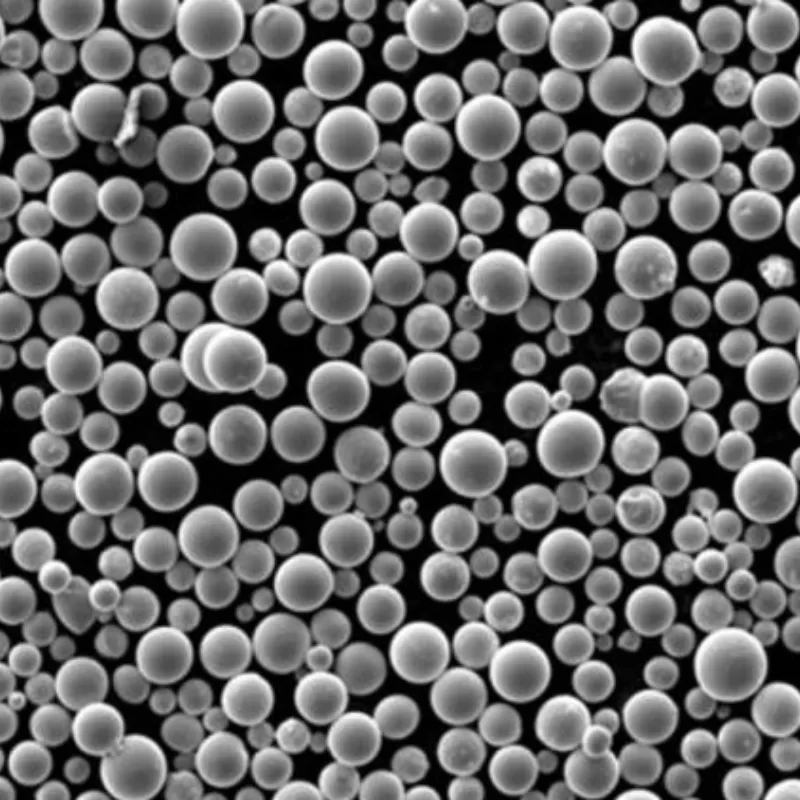

Spherical nickel-coated tungsten powder is prepared by chemical packaging process, with a high spherical degree, good mobility, high purity, large loose loading density, metal nickel content, and controllable coating thickness, and can be used in national defense, petrochemical, mechanical equipment, medical equipment, and other fields.
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Spherical Nickel-coated Tungsten Powder Synonyms
Nickel-wolfram, NiW, WNi2, WNi3, NiW3, CAS 12384-50-8, CAS 12260-61-6, CAS 304021-50-9
Spherical Nickel-coated Tungsten Powder Particle Size
0-15μm, 5-25μm, 15-45μm, 15-53μm, 45-75μm, 45-105μm, 75-150μm. (Various granularities can be customized according to customer requirements)
Spherical Nickel-coated Tungsten Powder Particle Size Description
● 0-15μm (D10=3~5μm, D50=6~10μm, D90=12~14μm)
● 5-25μm (D10=5~10μm, D50=15~20μm, D90=20~25μm)
● 15-45μm (D10=15~20μm, D50=25~30μm, D90=35~40μm)
● 15-53μm (D10=15~20μm, D50=25~35μm, D90=45~50μm)
● 45-75μm (D10=45~55μm, D50=55~65μm, D90=70~75μm)
● 45-105μm (D10=50~60μm, D50=75~85μm, D90=95~105μm)
● 45-150μm (D10=55~70μm, D50=110~120μm, D90=140~150μm)
● 75-150μm (D10=80~90μm, D50=110~125μm, D90=135~150μm)
Spherical Nickel-coated Tungsten Powder Chemical Composition
| Chemical Composition | |||||
| Element | Value(%) | Test Method | Element | Value(%) | Test Method |
| W | Bal | ICP-AES | Sn | <0.001 | ICP-AES |
| Ni | 2~25 | ICP-AES | Sb | <0.001 | ICP-AES |
| Si | <0.005 | ICP-AES | Cu | <0.003 | ICP-AES |
| Mg | <0.005 | ICP-AES | Ca | <0.001 | ICP-AES |
| Mn | <0.004 | ICP-AES | Pt | <0.001 | ICP-AES |
| Gas Impurities | |||||
| Element | Value(%) | Element | Value(%) | ||
| C | ≤0.005 | O | ≤0.06 | ||
| N | ≤0.003 | P | ≤0.005 | ||
Spherical Nickel-coated Tungsten Powder Physical Composition
| Density(g/cm³) | Hall Flow Rate(s/50g) | |
| Apparent Density | Tap Density | Value |
| ≥6.5 | ≥8.0 | ≤8.0 |
Spherical Nickel-coated Tungsten Powder Characteristics
High purity (≥ 99.9%), ultra-hypoxia (≤ 600ppm), high sphericity (≥ 98%), uniform particle size distribution, excellent mobility energy (≤ 8.0s/50g), high loose loading density (≥ 6.5g/cm3) and solid density (≥ 8.0g/cm3).
Spherical Nickel-coated Tungsten Powder applicable processes
Laser/electron beam additive manufacturing (SLM/EBM), laser direct deposition (DLD), powder thermal and other static pressure forming (HIP), metal injection forming (MIM), powder metallurgy (PM), laser melting application (LC), etc.
Spherical Nickel-coated Tungsten Powder Application
Spherical nickel-coated tungsten composite powder adopts tungsten carbide powder as raw material, the powder is prepared by chemical packaging process, with a high spherical degree, good mobility, high purity, large loose loading density, metal nickel content and controllable coating thickness, and can be used in national defense, petrochemical, mechanical equipment, medical equipment, and other fields.
Packing of Spherical Nickel-coated Tungsten Powder
Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 440 gallon liquid totes Special package is available on request.
ATTs’Spherical Nickel-coated Tungsten Powder is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
