Spherical Tungsten Copper Alloy Powder

Tungsten Copper Alloy Synonyms

Copper–tungsten, WCu, CuW, Copper - Tungsten Alloy, ASTM B702 (Class D) Rev. 93 (R10)

Spherical Tungsten Copper Alloy Powder Particle Size

0-15μm, 5-25μm, 15-45μm, 15-53μm, 45-75μm, 45-105μm, 75-150μm. (Various granularities can be customized according to customer requirements)

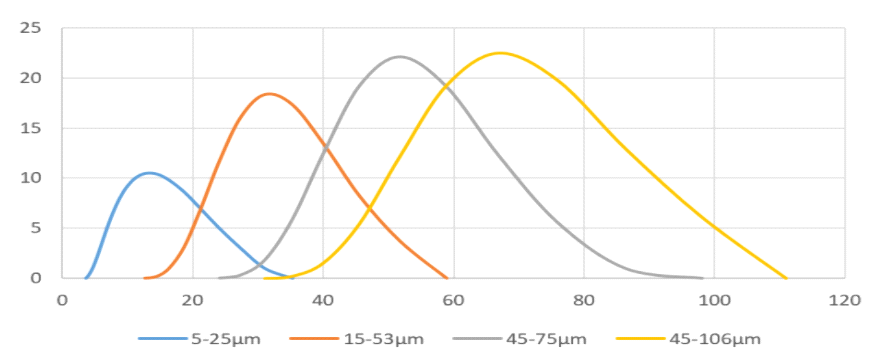

Spherical Tungsten Copper Alloy Powder Particle Size Description

● 0-15μm (D10=3~5μm, D50=6~10μm, D90=12~14μm)

● 5-25μm (D10=5~10μm, D50=15~20μm, D90=20~25μm)

● 15-45μm (D10=15~20μm, D50=25~30μm, D90=35~40μm)

● 15-53μm (D10=15~20μm, D50=25~35μm, D90=45~50μm)

● 45-75μm (D10=45~55μm, D50=55~65μm, D90=70~75μm)

● 45-105μm (D10=50~60μm, D50=75~85μm, D90=95~105μm)

● 45-150μm (D10=55~70μm, D50=110~120μm, D90=140~150μm)

● 75-150μm (D10=80~90μm, D50=110~125μm, D90=135~150μm)

Spherical Copper-coated Tungsten (W-Cu) Powder Chemical Composition

Spherical Copper-coated Tungsten (W-Cu) Powder Property

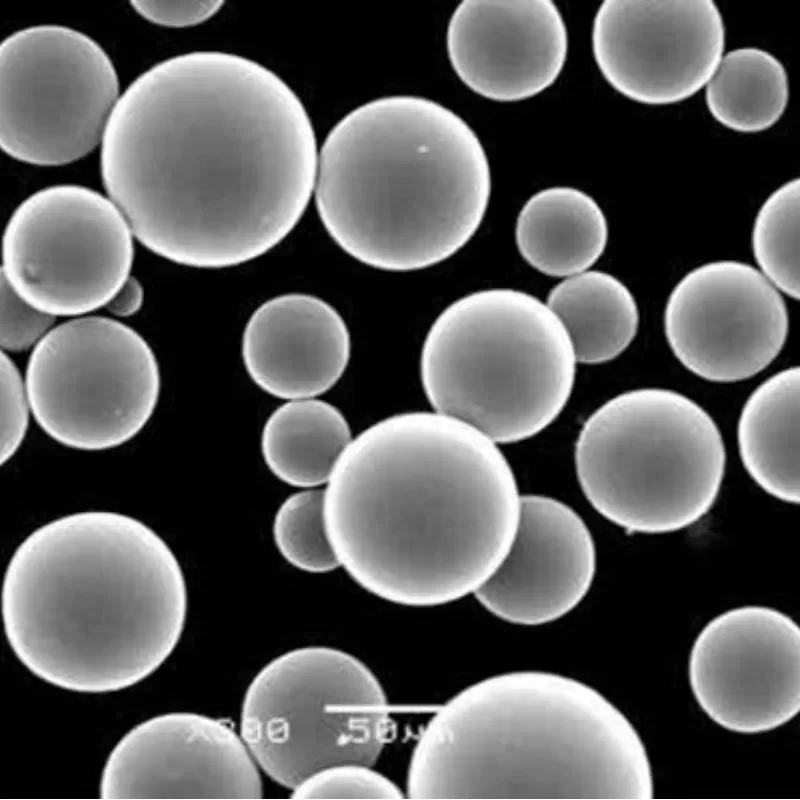

Spherical Copper-coated Tungsten (W-Cu) Powder Characteristics

high purity (≥ 99.9%), low oxygen (≤ 1000ppm), high sphericity (≥ 98%), uniform grain distribution, excellent mobility energy (≤10.0s/50g), high loose loading density (≥ 6.0g/cm3)

Spherical Copper-coated Tungsten (W-Cu) Powder Applicable Processes

Laser/electron beam additive manufacturing (SLM/EBM), laser direct deposition (DLD), powder thermal and other static pressure forming (HIP), metal injection forming (MIM), powder metallurgy (PM), laser melting application (LC), etc.

Spherical Copper-coated Tungsten (W-Cu) Powder Application

Spherical Copper-coated Tungsten Powder using tungsten carbide powder as raw material, prepared through the chemical packaging process, with high spherical, good mobility, high purity, loose loading density, metal copper content, coating thickness controllable characteristics, widely used in national defense, petrochemical, mechanical equipment, medical equipment, and other fields.

Packing of Spherical Tungsten Copper Alloy Powder

Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 440 gallon liquid totes Special package is available on request.

ATTs’Spherical Tungsten Copper Alloy Powder is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.

Chemical Identifiers
