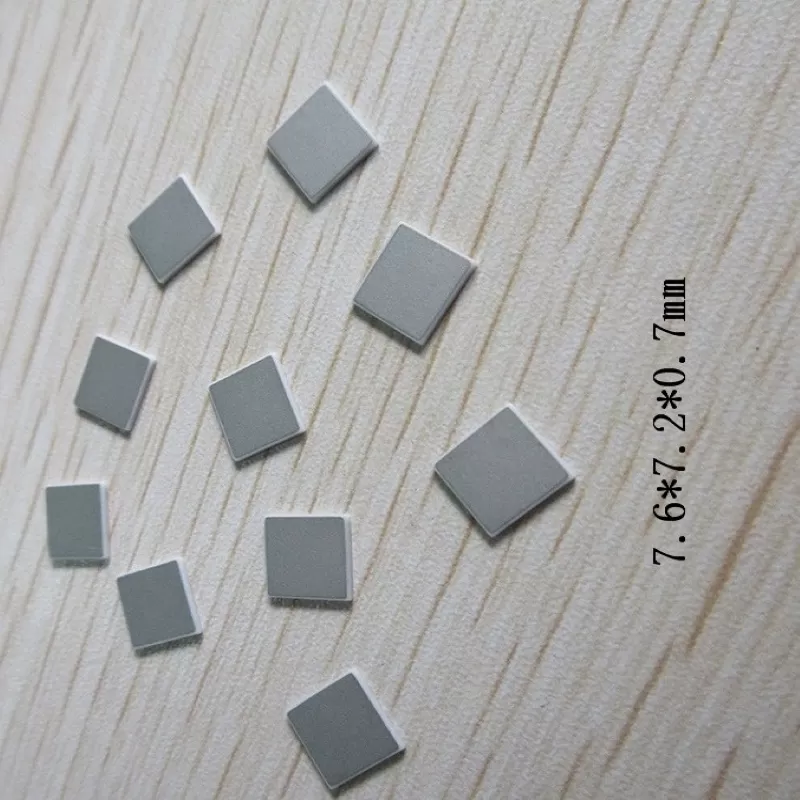

Beryllia Tablets，Beryllium Oxide Tablets，BeO

Product Information

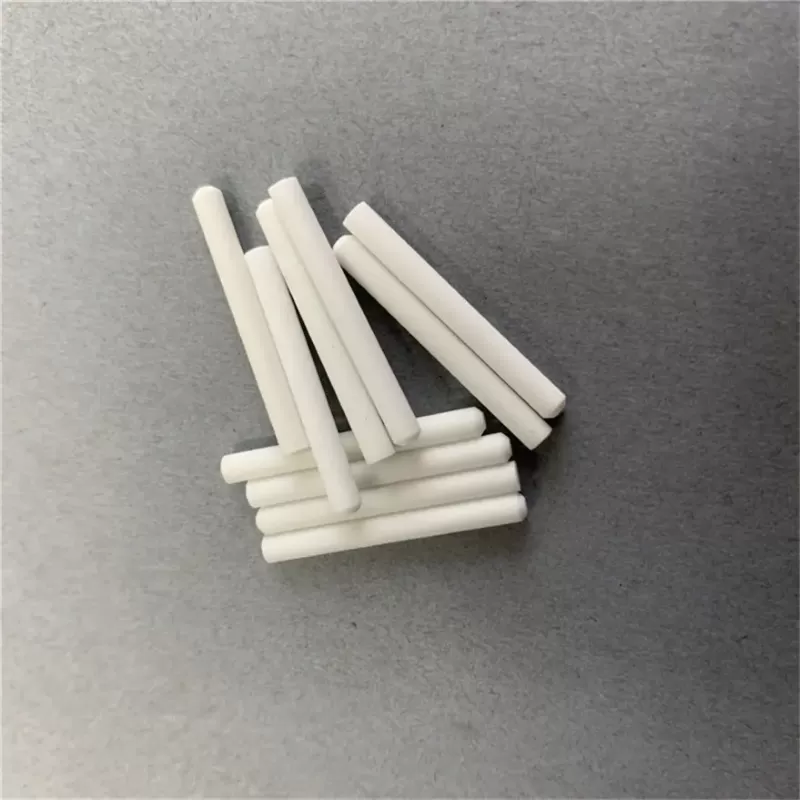

BeO provides all the desirable physical and dielectric characteristics exhibited by aluminum oxide or aluminum nitride and, in addition, offers thermal conductivity ten times higher than alumina, and fifty percent higher than aluminum nitride, a dielectric constant that is lower than both alumina and aluminum nitride, and weight per given volume that is fully a quarter less than alumina, and nearly ten percent less than aluminum nitride. As a thermally conductive and electrically insulating material its performance is exceeded only by that of diamond. it is an ideal material for applications requiring large heat dissipation as well as dielectric and mechanical strength. It is particularly well suited for use as a diode laser and semiconductor heat sinks and as a rapid thermal transfer medium for miniaturized circuitry and tightly contained electronic assemblages.These products range from heat sinks, crucibles, rods, washers, and thermocouple tubing to large monolithic radar and nuclear, and custom-made substrate components for a diverse range of aerospace, defense, electronic, and commercial applications.

Synonyms

Beryllium oxide, Beryllium monoxide, oxoberyllium

Beryllia Tablets Specifications

Dimensions

Per your request or drawing

We can customized as required

Properties（Theoretical）

Advantages

·         High strength over a wide temperature range

·         High hardness

·         Low friction coefficient

·         Excellent wear resistance

·         Good heat resistance

·         High operating temperature

·         Good chemical resistance

Applications of Beryllia Tablets

High-end laser diodes for commercial systems;

Industrial laser metal cutting and marking equipment;

Long-distance fiber optic transmission;

Semiconductor processing equipment;

End effector and arm assembly;

Wafer chuck;

Crucible for high temperature melting.

In-situ X-ray analysis for downhole drilling;

Concentrated photovoltaic (CPV) system;

Transmitter, receiver, modulator and switch;

Power amplifiers and drivers;

Microwave and millimeter wave communication modules;

Wireless communication;

Point-to-point and point-to-multipoint radio;

Satellite communication module.

Packing of Beryllia Tablets

Standard Packing:

Sealed bags in carton boxes. Special package is available on request.

As a ceramic material, BeO is quite fragile in a lot of cases. The Beryllia Foil are usually held in plastic bags by vacuum, and protected with heavy foam.

ATTs’ Beryllia Foil is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
