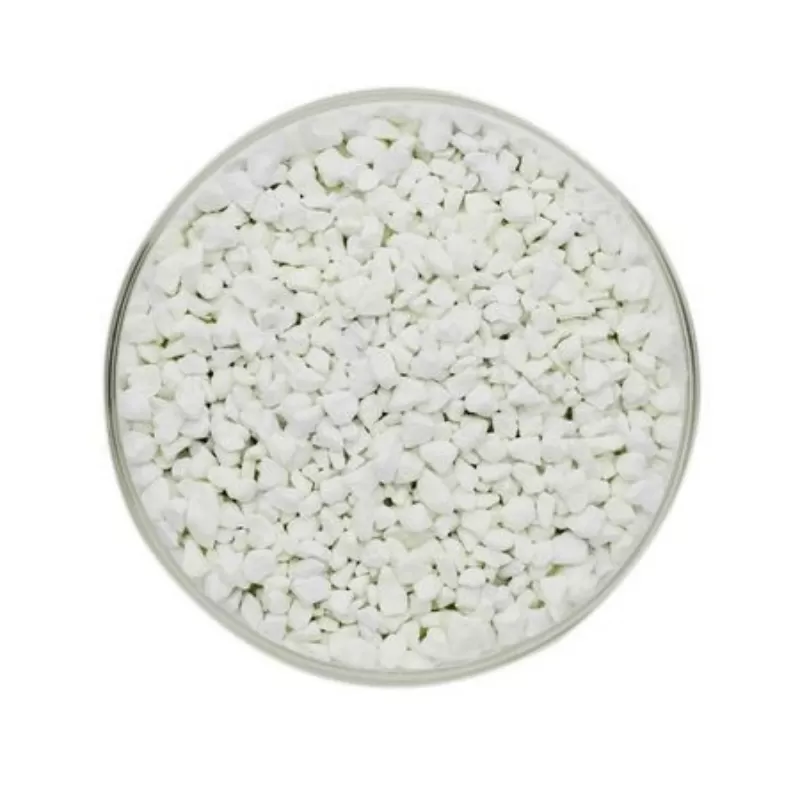

Barium Titanate (BaTiO3) Evaporation Material

Product Code : EM-BaTiO3-5N-Cu

Barium titanate (BaTiO3) is a high-temperature dielectric material used in evaporation processes, such as magnetron sputtering, to coat a variety of substrates. Barium titanate can be used to coat ceramic substrates, such as alumina, as well as most metals and alloys. It also works well with a wide range of plastics including ULTEM and PEEK. Barium titanate is used in applications including high frequency capacitors, actuators and sensors. It is also used as an oxide forming layer to provide dielectric protection to sensitive circuits. Barium titanate is a low absorption rate material, making it an excellent choice for applications that require moisture protection. Additionally, its high melting point of 2050°C makes it an ideal choice for vacuum evaporation applications.


Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.

Product Product Code Purity Size Contact Us
Barium Titanate (BaTiO3) Evaporation Material EM-BaTiO3-2N-Cu 99% Customize
Barium Titanate (BaTiO3) Evaporation Material EM-BaTiO3-3N-Cu 99.9% Customize
Barium Titanate (BaTiO3) Evaporation Material EM-BaTiO3-4N-Cu 99.99% Customize
Barium Titanate (BaTiO3) Evaporation Material EM-BaTiO3-5N-Cu 99.999% Customize

Product Information

Barium titanate (BaTiO3) is a high-temperature dielectric material used in evaporation processes, such as magnetron sputtering, to coat a variety of substrates. Barium titanate can be used to coat ceramic substrates, such as alumina, as well as most metals and alloys. It also works well with a wide range of plastics including ULTEM and PEEK. Barium titanate is used in applications including high frequency capacitors, actuators and sensors. It is also used as an oxide forming layer to provide dielectric protection to sensitive circuits. Barium titanate is a low absorption rate material, making it an excellent choice for applications that require moisture protection. Additionally, its high melting point of 2050°C makes it an ideal choice for vacuum evaporation applications.

Material Type: Barium titanate
Symbol: BaTiO3

CAS :

12047-27-7


Synonyms

N/A


Barium Titanate (BaTiO3) Evaporation Material Specification

Size:Pellet / Wire / Rod / Slug / Tablet / Customized

Per your request or drawing

We can customized as required


Properties(Theoretical)

Compound FormulaBaO3Ti
Molecular Weight233.19
AppearanceTypically   white powder (also available as plate, pieces, wafers, and other custom   shapes)
Melting Point1625 °C
Boiling PointN/A
Density6.08 g/mL at   25 °C
Solubility in H2OInsoluble
Refractive Indexno2.412;   ne=2.36
Crystal Phase / StructureTetragonal,   tP5
Exact Mass233.837937
Monoisotopic Mass233.837937



Application of Barium Titanate (BaTiO3)  Evaporation Material

• Used in deposition processes including semiconductor deposition, chemical vapor deposition (CVD) and physical vapor deposition (PVD)
• Used for optics including wear protection, decorative coatings, and displays.


Packing of Barium Titanate (BaTiO3)  Evaporation Material

Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 440 gallon liquid totes Special package is available on request. They are vacuum sealed. The MSDS and Material Certification Sheets will be packed with the product.

ATTs’Barium Titanate (BaTiO3)  Evaporation Material is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.


Chemical Identifiers

Linear FormulaBaTiO3
MDL NumberMFCD00003447
EC No.234-975-0
Beilstein/Reaxys No.N/A
Pubchem CID6101006
IUPAC Namebarium(2+);   oxygen(2-); titanium(4+)
SMILES[Ba+2].[Ti+4].[O-2].[O-2].[O-2]
InchI IdentifierInChI=1S/Ba.3O.Ti/q+2;3*-2;+4
InchI KeyVKJLWXGJGDEGSO-UHFFFAOYSA-N
