Home > Products > Sputtering Targets & Evaporation Materials > Evaporation Materials > Gold Evaporation Materials, Au

Gold Evaporation Materials, Au

Product Code : EM-Au-5N-Cu

Gold is one of the more beautiful precious metals with a lustrous, yellow sheen. It has a melting point of 1,064°C, a density of 19.3 g/cc, and a vapor pressure of 10-4 Torr at 1,132°C with its ideal evaporation temperature being around 1,400°C. It is soft, dense, malleable, ductile, and an excellent conductor of heat and electricity. Deposited films of gold are used as layers in the production of semiconductors, sensors, batteries, and data storage. High purity gold evaporation pellets play a huge role in deposition processes to ensure high-quality deposited film.

Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.

Product Product Code Purity Size Contact Us
Gold Evaporation Materials, Au EM-Au-2N-Cu 99% Customize
Gold Evaporation Materials, Au EM-Au-3N-Cu 99.9% Customize
Gold Evaporation Materials, Au EM-Au-4N-Cu 99.99% Customize
Gold Evaporation Materials, Au EM-Au-5N-Cu 99.999% Customize

Product Information

Gold is one of the more beautiful precious metals with a lustrous, yellow sheen. It has a melting point of 1,064°C, a density of 19.3 g/cc, and a vapor pressure of 10-4 Torr at 1,132°C with its ideal evaporation temperature being around 1,400°C. It is soft, dense, malleable, ductile, and an excellent conductor of heat and electricity. Deposited films of gold are used as layers in the production of semiconductors, sensors, batteries, and data storage. High purity gold evaporation pellets play a huge role in deposition processes to ensure high-quality deposited film.

ATT provides high-quality Gold  Evaporation Materials for research and industry purposes at competitive prices. We can provide Gold Evaporation Materials with different purity, size, and density according to your requirements.

Material Type:Gold
Symbol:Au
Color/Appearance:Gold, Metallic

CAS :

 7440-57-5


Synonyms

N/A


Gold  Evaporation Materials Specification

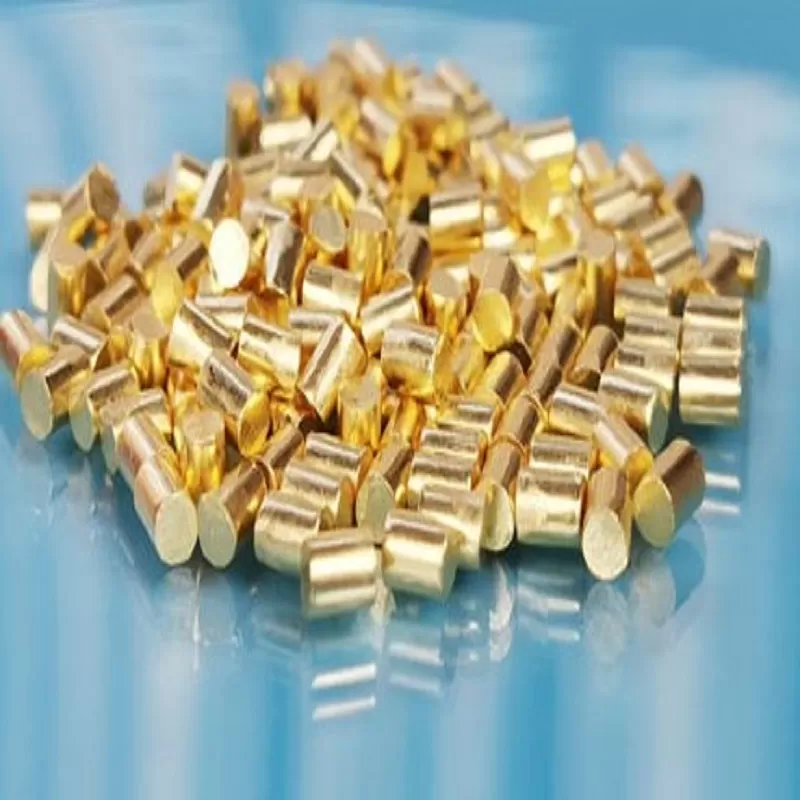

Size:Pellet / Wire / Rod / Slug / Tablet / Customized

Per your request or drawing

We can customized as required


Properties(Theoretical)

Molecular Weight196.97
AppearanceYellow
Melting Point1064.43 °C
Boiling Point3080 °C
Density19.3 g/cm3
Solubility in H2ON/A
Electrical Resistivity2.214 microhm-cm @ 20 °C
Electronegativity2.4 Paulings
Heat of Vaporization81.8 K-Cal/gm atom at 3080 °C
Poisson's Ratio0.44
Specific Heat0.308 Cal/g/K @ 25 °C
Tensile StrengthN/A
Thermal Conductivity3.18 W/cm/K @ 298.2 K
Thermal Expansion(25 °C) 14.2 µm·m-1·K-1
Vickers Hardness216 MPa
Young's Modulus79 GPa







Application of Gold Evaporation Materials

• Used in deposition processes including semiconductor deposition, chemical vapor deposition (CVD) and physical vapor deposition (PVD)
• Used for optics including wear protection, decorative coatings, and displays.


Packing of Gold Evaporation Materials

Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 440 gallon liquid totes Special package is available on request. They are vacuum sealed. The MSDS and Material Certification Sheets will be packed with the product.

ATTs’Gold Evaporation Materials is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.




Chemical Identifiers

Linear FormulaAu
MDL NumberMFCD00003436
EC No.231-165-9
Beilstein/Reaxys No.N/A
Pubchem CID23985
SMILES[Au]
InchI IdentifierInChI=1S/Au
InchI KeyPCHJSUWPFVWCPO-UHFFFAOYSA-N
