Magnesium Evaporation Materials, Mg

Product Code : EM-Mg-5N-Cu

Magnesium is a chemical element with the symbol Mg and atomic number 12. It is a shiny gray solid which bears a close physical resemblance to the other five elements in the second column (group 2, or alkaline earth metals) of the periodic table. All group 2 elements have the same electron configuration in the outer electron shell and a similar crystal structure. Magnesium is the ninth most abundant element in the universe.

Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.

Product Product Code Purity Size Contact Us
Magnesium Evaporation Materials, Mg EM-Mg-2N-Cu 99% Customize
Magnesium Evaporation Materials, Mg EM-Mg-3N-Cu 99.9% Customize
Magnesium Evaporation Materials, Mg EM-Mg-4N-Cu 99.99% Customize
Magnesium Evaporation Materials, Mg EM-Mg-5N-Cu 99.999% Customize

Product Information

Magnesium is a chemical element with the symbol Mg and atomic number 12. It is a shiny gray solid which bears a close physical resemblance to the other five elements in the second column (group 2, or alkaline earth metals) of the periodic table. All group 2 elements have the same electron configuration in the outer electron shell and a similar crystal structure. Magnesium is the ninth most abundant element in the universe.

ATT provides high-quality Germanium (Ge) Evaporation Materials for research and industry purposes at competitive prices. We can provide Germanium (Ge)  Evaporation Materials with different purity, size, and density according to your requirements.

Material Type: Magnesium
Symbol: Mg
Color/Appearance:  Silvery White, Metallic

CAS :

 7439-95-4


Synonyms

N/A



Magnesium Evaporation Materials Specification

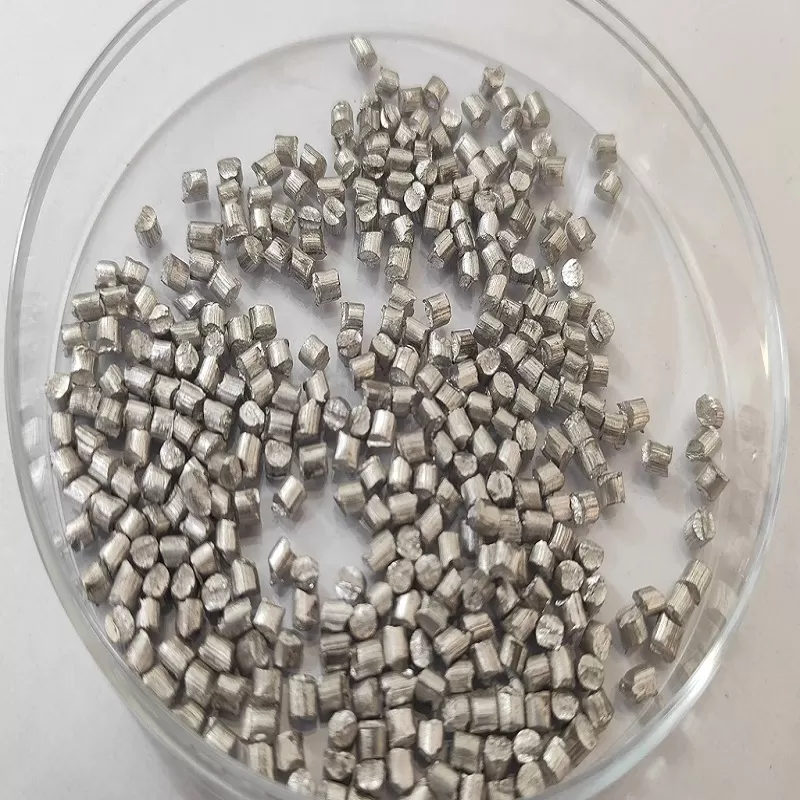

Size:Pellet / Wire / Rod / Slug / Tablet / Customized

Per your request or drawing

We can customized as required


Properties(Theoretical)

Material TypeMagnesium
SymbolMg
Atomic Weight24.305
Atomic Number12
Color/AppearanceSilvery White, Metallic
Thermal Conductivity160 W/m.K
Melting Point (°C)649
Coefficient of Thermal Expansion8.2 x 10-6/K
Theoretical Density (g/cc)1.74


Z Ratio1.61
E-BeamGood
Thermal Evaporation TechniquesBoat:  W, Mo, Ta, Cb
  Coil:  W
  Basket:  W
  Crucible:  Al2O3
E-Beam Crucible Liner MaterialFabmate®, Graphite, Tungsten
Temp. (°C) for Given Vap. Press. (Torr)10-8:  185
  10-6:  247
  10-4:  327
UN Number1869
CommentsExtremely high rates possible.





Application of Magnesium Evaporation Materials

• Used in deposition processes including semiconductor deposition, chemical vapor deposition (CVD) and physical vapor deposition (PVD)
• Used for optics including wear protection, decorative coatings, and displays.


Packing of Magnesium Evaporation Materials

Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 440 gallon liquid totes Special package is available on request. They are vacuum sealed. The MSDS and Material Certification Sheets will be packed with the product.

ATTs’Magnesium Evaporation Materials is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
