Home > Products > Sputtering Targets & Evaporation Materials > Evaporation Materials > Rhodium (Rh) Evaporation Material

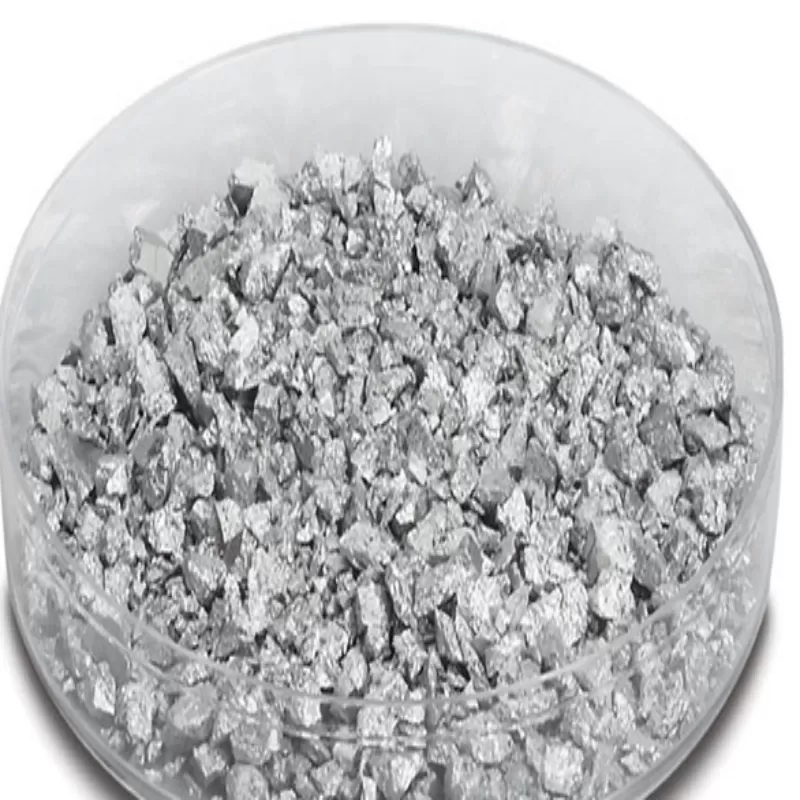

Rhodium (Rh) Evaporation Material

Product Code : EM-Rh-5N-Cu

Rhodium (Rh) is a silvery-white, corrosion-resistant metal used in the evaporation process in various industries. It is used in applications such as semiconductor industry and optical coating, mostly in vacuum evaporation source applications. It is also used in decorative jewelry and military electronics. Rhodium is usually sold in the form of pellets or powder, and it can be evaporated using either with electron beam or resistance heating. Rhodium can be found in many forms, including pure Rh, as well as its alloys, such as Rh-C, Rh-Si and Rh-Au. When heated, Rhodium forms vapor that adheres to surfaces for coating them. The evaporation rate of Rhodium is very low, requiring careful control of the temperature and pressure.

Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.

Product Product Code Purity Size Contact Us
Rhodium (Rh) Evaporation MaterialEM-Rh-2N-Cu 99%Customize
Rhodium (Rh) Evaporation MaterialEM-Rh-3N-Cu 99.9%Customize
Rhodium (Rh) Evaporation MaterialEM-Rh-4N-Cu 99.99%Customize
Rhodium (Rh) Evaporation MaterialEM-Rh-5N-Cu 99.999%Customize

Product Information


Rhodium (Rh) is a silvery-white, corrosion-resistant metal used in the evaporation process in various industries. It is used in applications such as semiconductor industry and optical coating, mostly in vacuum evaporation source applications. It is also used in decorative jewelry and military electronics. Rhodium is usually sold in the form of pellets or powder, and it can be evaporated using either with electron beam or resistance heating. Rhodium can be found in many forms, including pure Rh, as well as its alloys, such as Rh-C, Rh-Si and Rh-Au. When heated, Rhodium forms vapor that adheres to surfaces for coating them. The evaporation rate of Rhodium is very low, requiring careful control of the temperature and pressure.

Material Type: Rhodium

Symbol: Rh

CAS : 7440-16-6


Rhodium (Rh) Evaporation Material Specification

Size:Pellet / Wire / Rod / Slug / Tablet / Customized

Per your request or drawing

We can customized as required


Properties(Theoretical)

Molecular Weight102.91
Appearancesolid
Melting Point1966 °C
Boiling Point3727 °C
Density12.41 gm/cc
Solubility in H2ON/A
Electrical Resistivity4.51 microhm-cm @ 20 °C
Electronegativity2.2 Paulings
Heat of Fusion5.2 Cal/gm mole
Heat of Vaporization127 K-Cal/gm atom at 3727 °C
Poisson's Ratio0.26
Specific Heat0.0583 Cal/g/K @ 25 °C
Tensile StrengthN/A
Thermal Conductivity1.50 W/cm/K @ 298.2 K
Thermal Expansion(25 °C) 8.2 µm·m-1·K-1
Vickers Hardness1246 MPa
Young's Modulus380 GPa



Application of Rhodium (Rh) Evaporation Material

• Used in deposition processes including semiconductor deposition, chemical vapor deposition (CVD) and physical vapor deposition (PVD)
• Used for optics including wear protection, decorative coatings, and displays.


Packing of Rhodium (Rh)Evaporation Material

Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 440 gallon liquid totes Special package is available on request. They are vacuum sealed. The MSDS and Material Certification Sheets will be packed with the product.

ATTs’Rhodium (Rh) Evaporation Material is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.


Chemical Identifiers

Linear FormulaRh
MDL NumberMFCD00011201
EC No.231-125-0
Beilstein/Reaxys No.N/A
Pubchem CID23948
SMILES[Rh]
InchI IdentifierInChI=1S/Rh
InchI KeyMHOVAHRLVXNVSD-UHFFFAOYSA-N
