Home > Products > Sputtering Targets & Evaporation Materials > Evaporation Materials > Silver (Ag) Evaporation Material

Silver (Ag) Evaporation Material

Product Code : EM-Ag-5N-Cu

Silver has a melting point of 962°C, a density of 10.5 g/cc, and vapor pressure of 10-4 Torr at 1,105°C. Silver has been used since ancient times in countless products. It is ductile, malleable, and the most electrically conductive of all metals. It is considered a precious metal and can be found in jewelry, solders, paints, and mirrors.

Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.

Product Product Code Purity Size Contact Us
Silver (Ag) Evaporation MaterialEM-Ag-2N-Cu 99%Customize
Silver (Ag) Evaporation MaterialEM-Ag-3N-Cu 99.9%Customize
Silver (Ag) Evaporation MaterialEM-Ag-4N-Cu 99.99%Customize
Silver (Ag) Evaporation MaterialEM-Ag-5N-Cu 99.999%Customize

Product Information

Silver has a melting point of 962°C, a density of 10.5 g/cc, and vapor pressure of 10-4 Torr at 1,105°C. Silver has been used since ancient times in countless products. It is ductile, malleable, and the most electrically conductive of all metals. It is considered a precious metal and can be found in jewelry, solders, paints, and mirrors.

ATT provides high-quality Silver (Ag) Evaporation Materials for research and industry purposes at competitive prices. We can provide Silver (Ag)  Evaporation Materials with different purity, size, and density according to your requirements.

Material Type: Silver
Symbol: Ag
Color/Appearance: Silver, Metallic

CAS :

 7440-22-4


Synonyms

N/A



Silver (Ag)   Evaporation Materials Specification

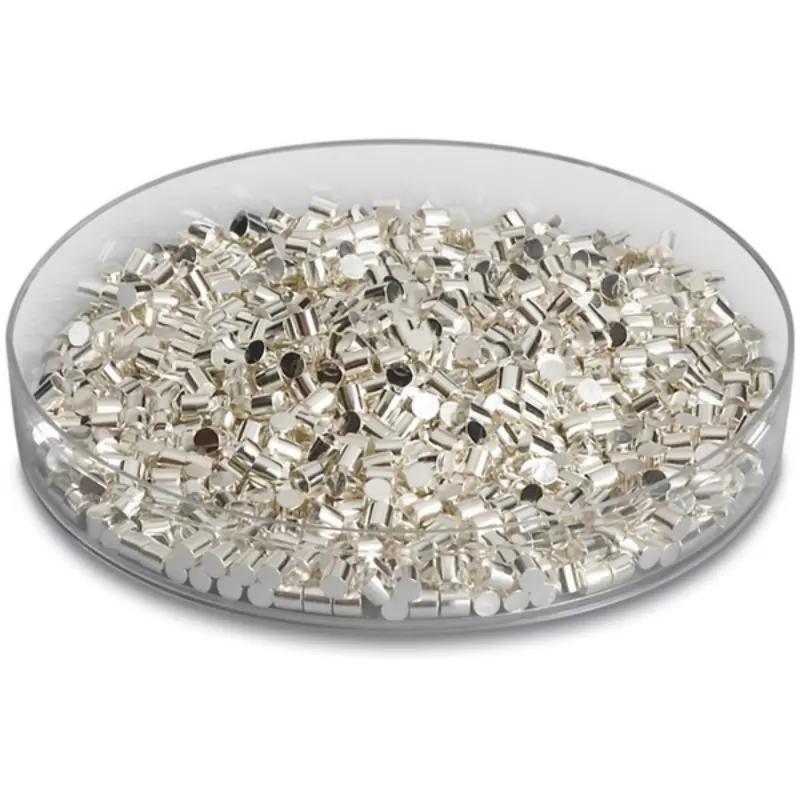

Size:Pellet / Wire / Rod / Slug / Tablet / Customized

Per your request or drawing

We can customized as required


Properties(Theoretical)


Molecular Weight107.87
AppearanceSilver solid
Melting Point961.78 °C
Boiling Point2162 °C
Density10.49 g/cm3
Solubility in H2ON/A
Electrical Resistivity1.586 nΩ ·cm (20 °C)
Electronegativity1.93 Paulings
Heat of Vaporization250.58 kJ ·mol-1
Poisson's Ratio0.37
Specific Heat0.233 J/gm ·K
Tensile StrengthN/A
Thermal Conductivity429 W ·m-1·K-1
Thermal Expansion(25 °C) 18.9 µm·m-1·K-1
Vickers Hardness251 MPa
Young's Modulus83 GPa






Application of Silver (Ag) Evaporation Materials

• Used in deposition processes including semiconductor deposition, chemical vapor deposition (CVD) and physical vapor deposition (PVD)
• Used for optics including wear protection, decorative coatings, and displays.


Packing of Silver (Ag) Evaporation Materials

Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 440 gallon liquid totes Special package is available on request. They are vacuum sealed. The MSDS and Material Certification Sheets will be packed with the product.

ATTs’Silver (Ag) Evaporation Materials is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.







Chemical Identifiers

Linear FormulaAg
MDL NumberMFCD00003397
EC No.231-131-3
Beilstein/Reaxys No.N/A
Pubchem CID23954
IUPAC NameN/A
SMILES[Ag]
InchI IdentifierInChI=1S/Ag
InchI KeyBQCADISMDOOEFD-UHFFFAOYSA-N
