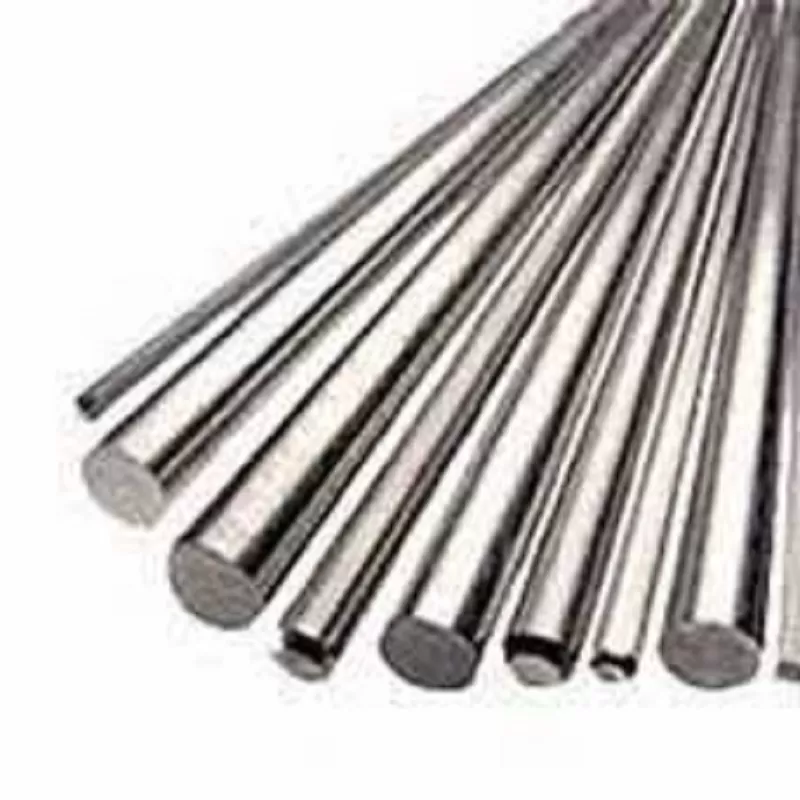

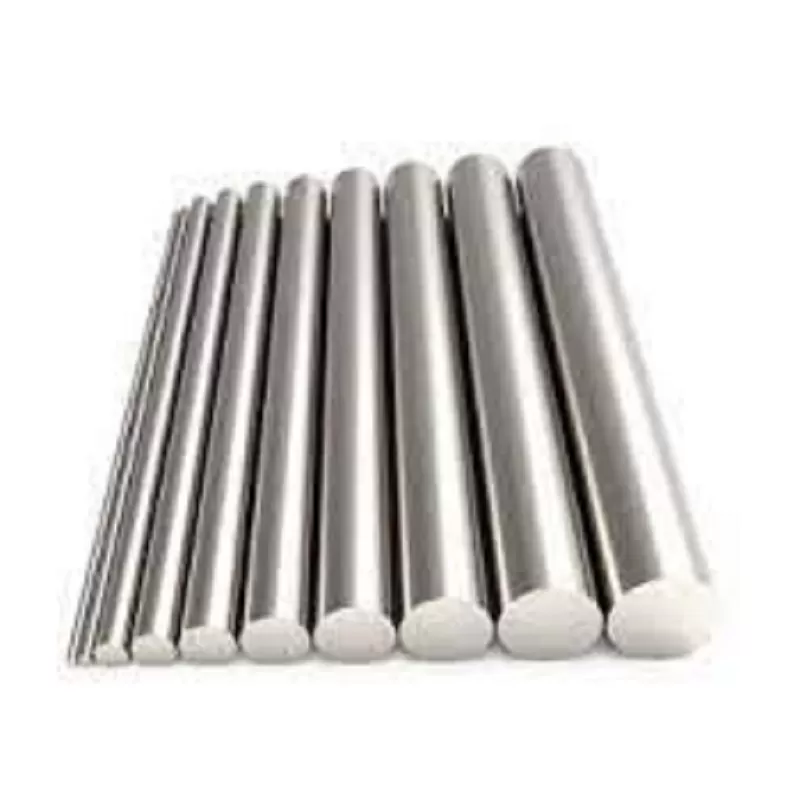

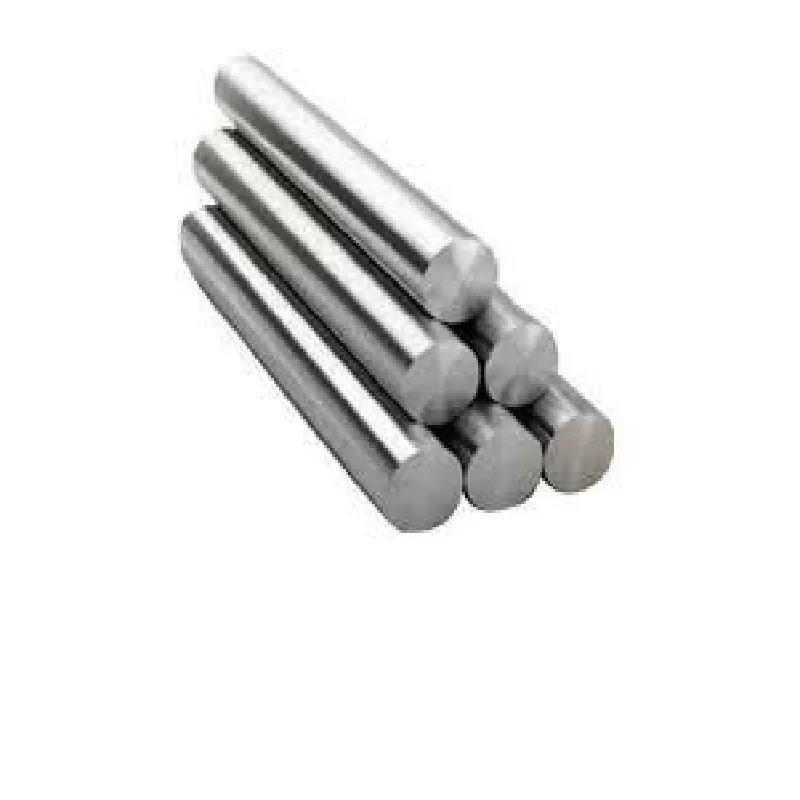

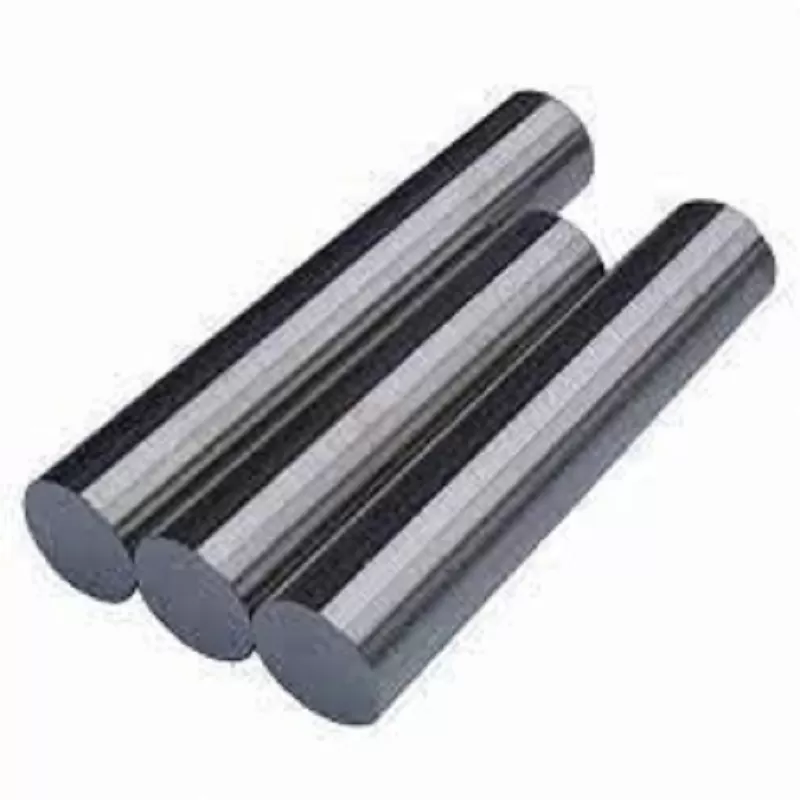

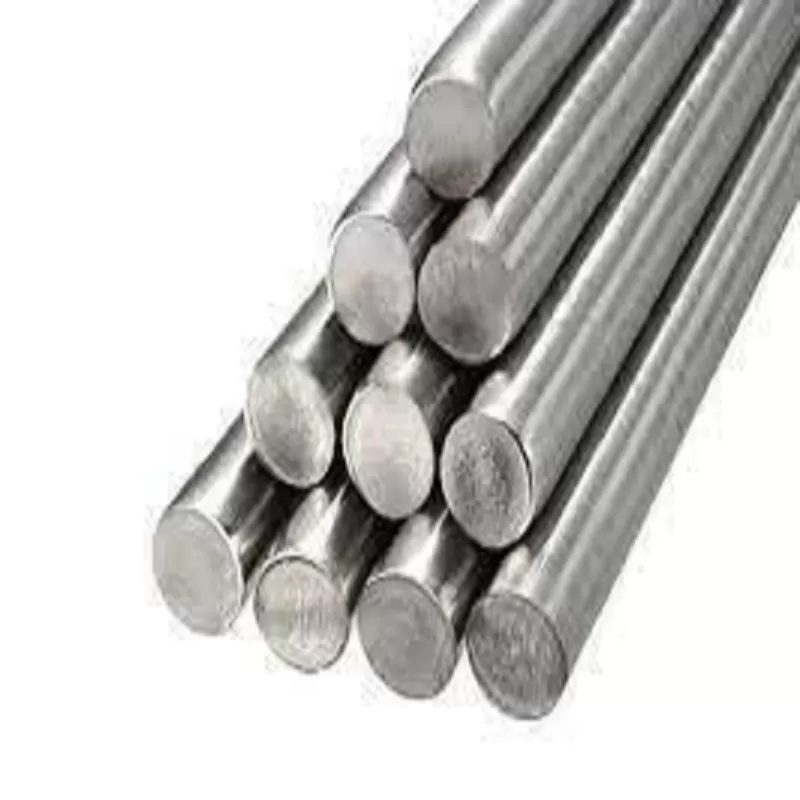

Incoloy 27-7MO (Alloy 27-7MO, UNS S31277) Bar/Rod

Product Code : AL-Inco27-7-NN-BR

INCOLOY® alloy 27-7MO (UNS S31277; EP 1,263,999 B1) is an advanced 7% molybdenum super-austenitic stainless steel offering corrosion resistance in most environments superior to 6% molybdenum super-austenitic stainless steels. In many environments alloy 27-7MO offers resistance approaching that of much more highly alloyed materials such as INCONEL alloys 625, 22, and C-276. Alloy 27-7MO products typically contain 27% nickel, 22% chromium, 7.2% molybdenum, and 0.34% nitrogen. Its limiting chemical composition is presented in Table 1. The alloy's content of nickel and nitrogen produce a stable austenitic structure. By virtue of its content of molybdenum, chromium, and nitrogen, alloy 27-7MO offers excellent resistance to pitting and crevice corrosion. The nickel, nitrogen, and molybdenum provide resistance to reducing media while a high content of chromium offers resistance to oxidizing media. Alloy 27-7MO performs well in mixed acid environments, especially those containing oxidizing and reducing acids. The alloy's contents of nickel and nitrogen result in resistance to stress corrosion cracking and attack by caustic media.

Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.

Product Product Code Purity Size Contact Us
Incoloy 27-7MO Bar/Rod AL-Inco27-7-NN-BR Customized Customized

Product Information

INCOLOY® alloy 27-7MO (UNS S31277; EP 1,263,999 B1) is an advanced 7% molybdenum super-austenitic stainless steel offering corrosion resistance in most environments superior to 6% molybdenum super-austenitic stainless steels. In many environments alloy 27-7MO offers resistance approaching that of much more highly alloyed materials such as INCONEL alloys 625, 22, and C-276. Alloy 27-7MO products typically contain 27% nickel, 22% chromium, 7.2% molybdenum, and 0.34% nitrogen. Its limiting chemical composition is presented in Table 1. The alloy's content of nickel and nitrogen produce a stable austenitic structure. By virtue of its content of molybdenum, chromium, and nitrogen, alloy 27-7MO offers excellent resistance to pitting and crevice corrosion. The nickel, nitrogen, and molybdenum provide resistance to reducing media while a high content of chromium offers resistance to oxidizing media. Alloy 27-7MO performs well in mixed acid environments, especially those containing oxidizing and reducing acids. The alloy's contents of nickel and nitrogen result in resistance to stress corrosion cracking and attack by caustic media. Alloy 27-7MO offers excellent resistance to corrosion in seawater and brine. It also resists stress corrosion cracking in all concentrations of sodium chloride up to saturation at the boiling point. It is resistant to the aggressive media encountered in air pollution control systems such as flue gas desulfurization equipment for high-sulfur coal-fired electric power utilities. Applications for INCOLOY alloy 27-7MO are found in the pollution control, power, marine, chemical processing, pulp and paper and oil and gas industries. The alloy offers a unique combination of corrosion resistance, high strength and ease of fabrication at an economical price. Alloy 27-7MO is available in standard product forms including plate, sheet, rod, bar, wire rod, pipe, tube, and forging stock

Synonyms

Alloy 27-7MO, UNS S31277,Incoloy Alloy 625, Incoloy Alloy 825, Incoloy Alloy 020, 27-7MO, 26-5MO, MA956 UNS, S67956, Superalloy, UNS N 06625, NiCr30FeMo, Hastelloy G30, ASTM B 582


Incoloy 27-7MO Bar/Rod Specification

Size:customized

Purity: customized

Per your request or drawing

We can customized as required

Metal TypeUNS S31277
BarASTM A 479/ASME SA 479
WireASTM A 479/ASME SA 479
SheetASTM A 240/ASME SA 240
PlateASTM A 240/ASME SA 240
TubeASTM A 213/ASME SA 213 (Tube), ASTM A 249/ASME SA 249
PipeASTM A 312/ASME SA 312
FittingASTM A182
ForgingASTM A 479/ASME SA 479, ASTM A182
Weld Wire
Weld Electrode
ASME CODEAllowable design stresses for ASME Boiler and PressureVessel Code construction are defined in ASME Code Case 2458.


Properties(Theoretical)

Density8.02g/cm³0.289lb/in³
Permeability at 200 oersted (15.9 kA/m)1.004
Permeability   at 200 oersted (15.9 kA/m) at -22°F (<-30°C)<1.01(Annealed)<1.01(50% cold worked)
Specific Heat454J/kg °C0.109Btu/lb °F
Electrical Resistivity at room temp., mill annealed condition604ohm•circ mil/ft100µohm•cm


Chemical Composition, %


FeNiCrMoNCuSiPCSMn
MinBalance2620.56.50.30.5




Max282380.41.50.50.030.020.013



Applications of Incoloy 27-7MO Bar/Rod

Applications for INCOLOY alloy 27-7MO are found in the pollution control, power, marine, chemical processing, pulp and paper and oil and gas industries. The alloy offers a unique combination of corrosion resistance, high strength and ease of fabrication at an economical price. Alloy 27-7MO is available in standard product forms including plate, sheet, rod, bar.


Packing of Incoloy 27-7MO Bar/Rod

Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 440 gallon liquid totes Special package is available on request.

ATTs’ Incoloy 27-7MO Bar/Rod is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
