Product Code : AL-In625-NN-SP
Inconel alloys are oxidation- and corrosion-resistant materials well suited for service in extreme environments subjected to high mechanical loads. When heated, Inconel forms a thick and stable passivating oxide layer protecting the surface from further attack. Inconel retains strength over a wide temperature range, attractive for high-temperature applications where aluminium and steel would succumb to creep as a result of thermally induced crystal vacancies (see Arrhenius equation). Inconel's high temperature strength is developed by solid solution strengthening or precipitation strengthening, depending on the alloy. In age-hardening or precipitation-strengthening varieties, small amounts of niobium combine with nickel to form the intermetallic compound Ni3Nb or gamma double prime (γ″). Gamma prime forms small cubic crystals that inhibit slip and creep effectively at elevated temperatures. The formation of gamma-prime crystals increases over time, especially after three hours of a heat exposure of 850 °C (1,560 °F), and continues to grow after 72 hours of exposure Inconel Nickel-Chromium Alloy 625 is a highly corrosion and heat resistant alloy with excellent mechanical properties ideal for use in high temperature applications such as heat-treating, chemical processing, and nuclear reactor components. The addition of molybdenum and niobium increases the strength and corrosion resistance of the nickel-chromium base, imparting a stiffening effect that eliminates the need for precipitation-hardening treatments.
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Product Information
Inconel alloys are oxidation- and corrosion-resistant materials well suited for service in extreme environments subjected to high mechanical loads. When heated, Inconel forms a thick and stable passivating oxide layer protecting the surface from further attack. Inconel retains strength over a wide temperature range, attractive for high-temperature applications where aluminium and steel would succumb to creep as a result of thermally induced crystal vacancies (see Arrhenius equation). Inconel's high temperature strength is developed by solid solution strengthening or precipitation strengthening, depending on the alloy. In age-hardening or precipitation-strengthening varieties, small amounts of niobium combine with nickel to form the intermetallic compound Ni3Nb or gamma double prime (γ″). Gamma prime forms small cubic crystals that inhibit slip and creep effectively at elevated temperatures. The formation of gamma-prime crystals increases over time, especially after three hours of a heat exposure of 850 °C (1,560 °F), and continues to grow after 72 hours of exposure Inconel Nickel-Chromium Alloy 625 is a highly corrosion and heat resistant alloy with excellent mechanical properties ideal for use in high temperature applications such as heat-treating, chemical processing, and nuclear reactor components. The addition of molybdenum and niobium increases the strength and corrosion resistance of the nickel-chromium base, imparting a stiffening effect that eliminates the need for precipitation-hardening treatments.
Synonyms
Inconel-625, IN625, Inconel Alloy 625 include: Inconel 625, Chronin 625, Altemp 625, Haynes 625, Nickelvac 625 Nicrofer 6020 and UNS designation N06625

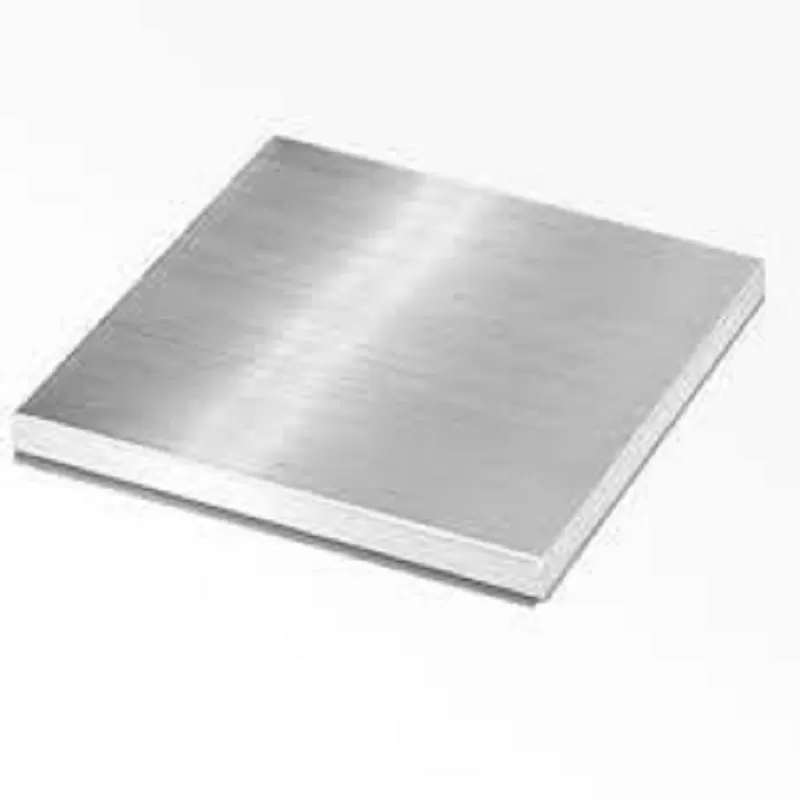

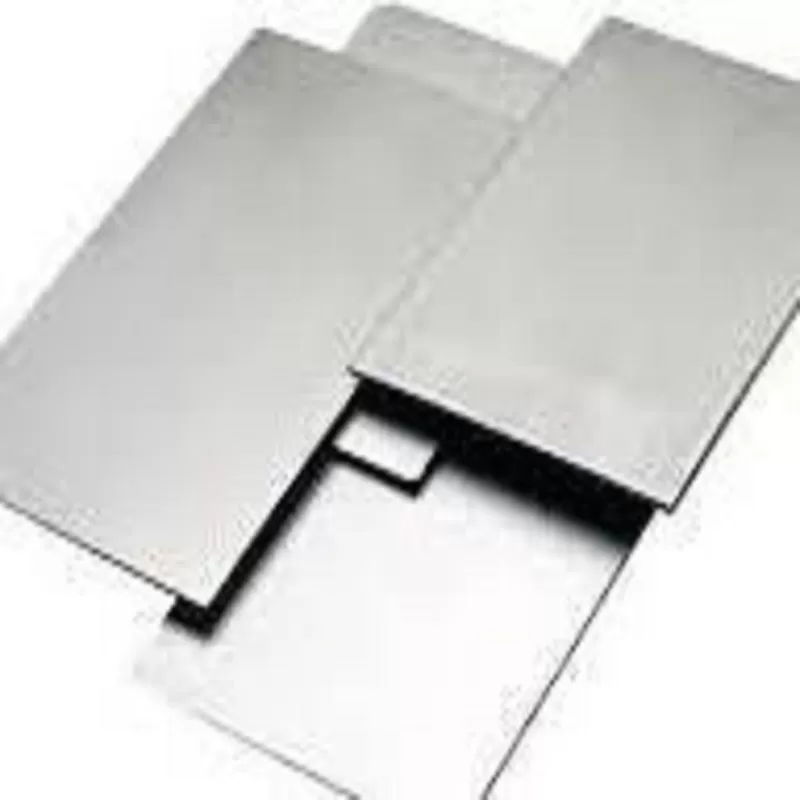

Inconel 625 Alloy Sheet Specification
Size：customized
Purity: customized
Per your request or drawing
We can customized as required
Properties（Theoretical）
| Appearance | Solid |
| Melting Point | 1290-1350 °C |
| Density | 8.44 g/cm3 |
| Electrical Resistivity | 129 µΩ·cm (21 °C) |
| Electronegativity | 0.098 J/kg·°C (21 °C) |
| Tensile Strength | 827-1034 MPa (annealed) |
| Thermal Conductivity | 9.2-9.8 W/m·°C (21 °C) |
| Thermal Expansion | 12.8 10-6K-1 |
| Vickers Hardness | 311 HV0.5 ±4 HV0.5 (Z) / 321 HV0.5 ±17 HV0.5 (XY) |
| Curie temperature ( C ) | -196 |
| Initial permeability | 1.0006 |
| Elongation at break ( % ) | < 40.0 |
| Hardness - Brinell | 175 - 240 |
| Modulus of elasticity ( GPa ) | 147.0 - 210.0 |
| Coefficient of thermal expansion ( x10⁻⁶ K⁻¹ ) | 12.800 @20-100°C |
| Specific heat ( J K⁻¹ kg⁻¹ ) | 410.0 @23°C |
| Thermal conductivity ( W m⁻¹ K⁻¹ ) | 9.80 @23°C |
Chemical Composition
| Element | Value |
| Al | 2500 PPM |
| Ti | 2500 PPM |
| Mn | 2500 PPM |
| S | <150 PPM |
| Si | <5000 PPM |
| C | <1000 PPM |
| Cr | 21.5 Percent |
| Fe | <5 Percent |
| Mo | 9 Percent |
Chemical Composition, %
| Ni | Fe | Cr | Si | Mo | Mn | C | |
| Max | 5 | 23 | 0.5 | 10 | 0.5 | 0.1 | |
| Min | 58 | 20 | 8 |
Applications of Inconel 601 Alloy Sheet
Inconel is often encountered in extreme environments. It is common in gas turbine blades, seals, and combustors, as well as turbocharger rotors and seals, electric submersible well pump motor shafts, high temperature fasteners, chemical processing and pressure vessels, heat exchanger tubing, steam generators and core components in nuclear pressurized water reactors, natural gas processing with contaminants such as H2S and CO2, firearm sound suppressor blast baffles, and Formula One, NASCAR, NHRA, and APR, LLC exhaust systems
• Components where exposure to seawater and high mechanical stresses are required.
• Structures in seawater applications and prone to high mechanical stress
• Oil and gas production
• Components in flue gas scrubbers
• Aerospace industry
Packing of Inconel 601 Alloy Sheet
Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 440 gallon liquid totes Special package is available on request.
ATTs’ Inconel 601 Alloy Sheet is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
Inconel Alloys Include
· Inconel 188: Readily fabricated for commercial gas turbine and aerospace applications.
· Inconel 230: Alloy 230 Plate & Sheet mainly used by the power, aerospace, chemical processing and industrial heating industries.
· Inconel 600: Solid solution strengthened
· Inconel 601:
· Inconel 617: Solid solution strengthened (nickel-chromium-cobalt-molybdenum), high-temperature strength, corrosion and oxidation resistant, high workability and weldability.[66] Incorporated in ASME Boiler and Pressure Vessel Code for high temperature nuclear applications such as molten salt reactors
· Inconel 625: Acid resistant, good weldability. The LCF version is typically used in bellows.
· Inconel 690: Low cobalt content for nuclear applications, and low resistivity
· Inconel 713C: Precipitation hardenable nickel-chromium base cast alloy
· Inconel 718: Gamma double prime strengthened with good weldability
· Inconel X-750: Commonly used for gas turbine components, including blades, seals and rotors.
· Inconel 751: Increased aluminium content for improved rupture strength in the 1600 °F range
· Inconel 792: Increased aluminium content for improved high temperature corrosion resistant properties, used especially in gas turbines
· Inconel 907
· Inconel 909
· Inconel 706
· Inconel 939: Gamma prime strengthened to increase weldability.
· Inconel 925: Inconel 925 is a nonstabilized austenitic stainless steel with low carbon content.
In age hardening or precipitation strengthening varieties, alloying additions of aluminum and titanium combine with nickel to form the intermetallic compound Ni3(Ti,Al) or gamma prime (γ′). Gamma prime forms small cubic crystals that inhibit slip and creep effectively at elevated temperatures.
| Inconel | Element, proportion by mass (%) | ||||||||||||||
| Ni | Cr | Fe | Mo | Nb & Ta | Co | Mn | Cu | Al | Ti | Si | C | S | P | B | |
| 600 | ≥72.0 | 14.0–17.0 | 6.0–10.0 | — | ≤1.0 | ≤0.5 | ≤0.5 | ≤0.15 | ≤0.015 | ||||||
| 617 | 44.2–61.0 | 20.0–24.0 | ≤3.0 | 8.0–10.0 | 10.0–15.0 | ≤0.5 | ≤0.5 | 0.8–1.5 | ≤0.6 | ≤0.5 | 0.05–0.15 | ≤0.015 | ≤0.015 | ≤0.006 | |
| 625 | ≥58.0 | 20.0–23.0 | ≤5.0 | 8.0–10.0 | 3.15–4.15 | ≤1.0 | ≤0.5 | ≤0.4 | ≤0.4 | ≤0.5 | ≤0.1 | ≤0.015 | ≤0.015 | ||
| 690 | ≥58 | 27–31 | 7–11 | ≤0.50 | ≤0.50 | ≤0.50 | ≤0.05 | ≤0.015 | |||||||
| Nuclear grade 690 | ≥58 | 28–31 | 7–11 | ≤0.10 | ≤0.50 | ≤0.50 | ≤0.50 | ≤0.04 | ≤0.015 | ||||||
| 718 | 50.0–55.0 | 17.0–21.0 | Balance | 2.8–3.3 | 4.75–5.5 | ≤1.0 | ≤0.35 | ≤0.3 | 0.2–0.8 | 0.65–1.15 | ≤0.35 | ≤0.08 | ≤0.015 | ≤0.015 | ≤0.006 |
| X-750 | ≥70.0 | 14.0–17.0 | 5.0–9.0 | 0.7–1.2 | ≤1.0 | ≤1.0 | ≤0.5 | 0.4–1.0 | 2.25–2.75 | ≤0.5 | ≤0.08 | ≤0.01 |
