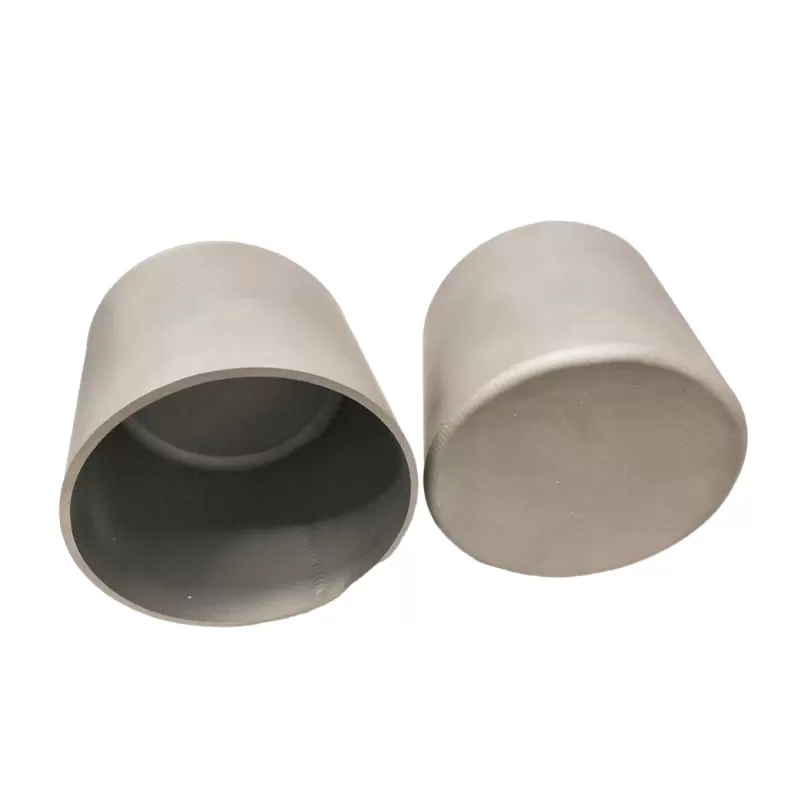

Iridium Crucibles（Ir Crucibles）

Product Information

Iridium is a platinum group metal with atomic number 77. Iridium is a very hard and brittle metal with silvery color. The remarkable characteristics of Iridium is high melting point up to more than 2,400 degrees C and high corrosion resistivity not to be dissolved even by nitro hydrochloric acid under normal temperature, and those are the reasons why Iridium is necessary for growing crystal of high melting point. Iridium Crucibles are made from raw Iridium material with high purity & no defect by using the Plasma Double Melting process. Our hot forging machine and rolling mills enable us to produce high-density iridium plate good for making crucibles. Our iridium crucibles are used to grow various metal oxide single crystals, including scintillation crystals used in metal scanners and mobile phones as well as those used in liquid crystal display backlighting. Our main technician for the iridium and relevant precious metal over 30 years who skillful and confirm the processing and we guarantee there will no inner defects. We also have other Iridium products for Single-Crystal growth , such as the iridium seed holder and so on

Iridium crucibles are mainly used for a particular way of single crystal growth, called Czochralski method (CZ method).. CZ method is the way of crystal growth by touching seed crystal to melted raw materials of the crystal in the crucible, and then rotating and pulling up very slowly. LT (Lithium Tantalite) for noise filter of cell phone and Sapphire for LED substrate are representative crystals made with Iridium Crucibles.

Synonyms

Iridium Crucibles Specification

Dimensions

Size: customized

Cylindrical or conical shapes with wall thicknesses according to specifications Choice of welded, solid-drawn bottom and seamless iridium crucibles
Purity: >=99.0%, 99.5%, 99.9%, 99.99%, 99.995%

Per your request or drawing

We can customized as required

Iridium Products

Other: Spherical Iridium Powder, Iridium crucibles, Iridium nuts, Iridium bolts, Iridium heating elements, and Iridium shielding screens.

Properties（Theoretical）

Chemical composition

Applications of Iridium Crucibles

Iridium crucible can be used to grow refractory oxide crystals, which can work for thousands of hours at 2100 to 2200 °C. It is an important precious metal vessel material.

Widely used in coating processing industries such as optical data storage application and film coating.

Iridium Crucibles are mainly used for a particular way of single crystal growth, called the Czochralski method (CZ method). The remarkable characteristics of Iridium are high melting point up to more than 2,400 degrees C and high corrosion resistivity not to be dissolved even by nitro-hydrochloric acid under normal temperature, and those are the reasons why Iridium is necessary for growing crystals of high melting point. CZ method is the way of crystal growth by touching seed crystal to melted raw materials of the crystal in the crucible, and then rotating and pulling up very slowly. LT (Lithium Tantalite) for noise filter of cell phone and Sapphire for LED substrate are representative crystals made with Iridium Crucibles.

Packing of Iridium Crucibles

Standard Packing:

Sealed bags in carton boxes. Special package is available on request.

ATTs’ Iridium Crucibles is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
