Home > Products > Metal & Alloys > Other Metal And Alloys > Lead Metal and Alloys > Lead Slugs

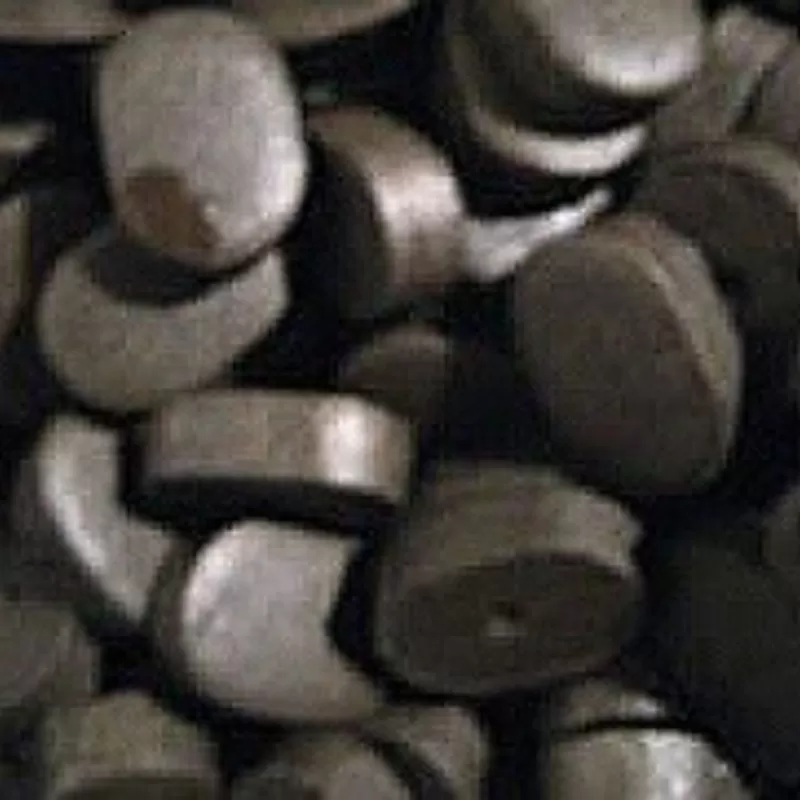

Lead Slugs

Product Code : ME-Pb-5N-SU

ATT specializes in producing high-purity lead slug with the highest density and smallest average grain size for semiconductor, chemical vapor deposition (CVD) and physical vapor deposition (PVD) processes including thermal and electron beam (E-Beam) evaporation, low temperature organic evaporation, atomic layer deposition (ALD), metal-organic and chemical vapor deposition (MOCVD). Our standard slug sizes range from 1/8 "x 1/8" to 1/4 "x 1/4" and 3 mm diameter. We can also offer slugs beyond this range for ultra-high purity thin film applications such as fuel cells and solar layers. The material is produced by ultra-high purification process such as crystallization, solid state and sublimation. ATT specializes in the production of custom compositions for commercial and research applications as well as new proprietary technologies. ATT also casts any rare earth metal and most other advanced materials into bars, rods, or sheets, as well as other mechanical shapes, and is cast in solution and organic metrology by other processes, such as nanoparticles. ATT produces a number of standard grades where applicable, including the Mil Spec(military grade); ACS, reagent and technical grade; Food, agricultural and pharmaceutical grades; Optical grades, USP and EP/BP(European Pharmacopoeia/British Pharmacopoeia), and follow applicable ASTM test standards. Typical and custom packaging is available.

ATT is a professional supplier of Lead Slugs, and we also manufacture tablets, balls, ingots, balls, sheets, powders, rods, wires, sputtering targets, and many other forms and custom shapes. Other shapes are available upon request.

Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.

Product Product Code Purity Size Contact Us
Lead Slugs ME-Pb-2N-SU 99% Customized
Lead Slugs ME-Pb-3N-SU 99.9% Customized
Lead Slugs ME-Pb-4N-SU 99.99% Customized
Lead Slugs ME-Pb-5N-SU 99.999% Customized

Product Information

ATT specializes in producing high-purity lead slug with the highest density and smallest average grain size for semiconductor, chemical vapor deposition (CVD) and physical vapor deposition (PVD) processes including thermal and electron beam (E-Beam) evaporation, low temperature organic evaporation, atomic layer deposition (ALD), metal-organic and chemical vapor deposition (MOCVD). Our standard slug sizes range from 1/8 "x 1/8" to 1/4 "x 1/4" and 3 mm diameter. We can also offer slugs beyond this range for ultra-high purity thin film applications such as fuel cells and solar layers. The material is produced by ultra-high purification process such as crystallization, solid state and sublimation. ATT specializes in the production of custom compositions for commercial and research applications as well as new proprietary technologies. ATT also casts any rare earth metal and most other advanced materials into bars, rods, or sheets, as well as other mechanical shapes, and is cast in solution and organic metrology by other processes, such as nanoparticles. ATT produces a number of standard grades where applicable, including the Mil Spec(military grade); ACS, reagent and technical grade; Food, agricultural and pharmaceutical grades; Optical grades, USP and EP/BP(European Pharmacopoeia/British Pharmacopoeia), and follow applicable ASTM test standards. Typical and custom packaging is available.

ATT is a professional supplier of Lead Slugs, and we also manufacture tablets, balls, ingots, balls, sheets, powders, rods, wires, sputtering targets, and many other forms and custom shapes. Other shapes are available upon request.


Synonyms

Lead Slugs Properties (Theoretical)

Molecular Weight207.2
AppearanceBluish white
Melting Point327.502 °C
Boiling Point1740 °C
Density11.35 g/cm3
Solubility in H2ON/A
Electrical Resistivity20.648 microhm-cm @ 20 °C
Electronegativity1.8 Paulings
Heat of Fusion1.224 Cal/gm mole
Heat of Vaporization42.4 K-Cal/gm atom at 1740 °C
Poisson's Ratio0.44
Specific Heat0.038 Cal/g/oK @ 25 °C
Tensile StrengthN/A
Thermal Conductivity0.353 W/cm/K @ 298.2 K
Thermal Expansion(25 °C) 28.9 µm·m-1·K-1
Vickers HardnessN/A
Young's Modulus16 GPa


Applications of Lead Slugs

Lead is still widely used for car batteries, pigments, ammunition, cable sheathing, weights for lifting, weight belts for diving, lead crystal glass, radiation protection and in some solders. It is often used to store corrosive liquids.


Packing of Lead Slugs

Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L)s quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 440 gallon liquid totes Special package is available on request.

ATTs’Lead Slugs is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.

Chemical Identifiers

Linear FormulaPb
MDL NumberMFCD00134050
EC No.231-100-4
Beilstein/Reaxys No.N/A
Pubchem CID5352425
SMILES[Pb]
InchI IdentifierInChI=1S/Pb
InchI KeyWABPQHHGFIMREM-UHFFFAOYSA-N
