Product Code : AL-MoRe-Mo95%-CR
Molybdenum alloy can be added 2% ~ 5% rhenium which can improve the plasticity and strength of molybdenum. While 35% rhenium was added at room temperature, the deformation rate may reach 90%. The tensile strength, ductility and resistivity of molybdenum alloy will be improved with the increasing content of rhenium. Mo-5%Re and Mo-41%Re are usually used as thermocouple wires and structural materials in aerospace. Mo-50%Re can be used as high temperature structural materials.
Rhenium and molybdenum both belong to refractory metals and have good ductility and strength. Standard Molybdenum-Rhenium alloy contains 47.5% rhenium and serves many industrial. The addition of 47.5 % or 41% of rhenium greatly improves its ductility, weldability, and formability. This alloy has high-temperature physical properties of rhenium and good mechanical properties of molybdenum. Its rolling deformation of can reach 90% and can maintain good ductility even the alloy is after high temperatures.
The addition of rhenium in tungsten and molybdenum makes the alloys process the properties of good plasticity, high hardness, high strength and high temperature resistance and so on. They can be processed into a variety of structural material. Molybdenum rhenium alloy is often used in the manufacture of high speed rotating X-ray tubes, long life grid of microwave communications, space reactor core heating tubes, high temperature furnace heating bodies and high temperature thermocouples. We produce tungsten rhenium wires, rhenium molybdenum wires, tungsten rhenium bars/rods and molybdenum rhenium alloys.
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Product Information
Molybdenum alloy can be added 2% ~ 5% rhenium which can improve the plasticity and strength of molybdenum. While 35% rhenium was added at room temperature, the deformation rate may reach 90%. The tensile strength, ductility and resistivity of molybdenum alloy will be improved with the increasing content of rhenium. Mo-5%Re and Mo-41%Re are usually used as thermocouple wires and structural materials in aerospace. Mo-50%Re can be used as high temperature structural materials.
Rhenium and molybdenum both belong to refractory metals and have good ductility and strength. Standard Molybdenum-Rhenium alloy contains 47.5% rhenium and serves many industrial. The addition of 47.5 % or 41% of rhenium greatly improves its ductility, weldability, and formability. This alloy has high-temperature physical properties of rhenium and good mechanical properties of molybdenum. Its rolling deformation of can reach 90% and can maintain good ductility even the alloy is after high temperatures.
The addition of rhenium in tungsten and molybdenum makes the alloys process the properties of good plasticity, high hardness, high strength and high temperature resistance and so on. They can be processed into a variety of structural material. Molybdenum rhenium alloy is often used in the manufacture of high speed rotating X-ray tubes, long life grid of microwave communications, space reactor core heating tubes, high temperature furnace heating bodies and high temperature thermocouples. We produce tungsten rhenium wires, rhenium molybdenum wires, tungsten rhenium bars/rods and molybdenum rhenium alloys.
Molybdenum Rhenium Alloy Synonyms
Molybdenum-rhenium, 60719-51-9, Mo:Re 59:41, 52.5:47.5
Molybdenum Rhenium alloy Crucibles Specification
Per your request or drawing
We can customized as required
| Product | Composition | Specifications |
| Mo-Re Alloy Sheet | Mo-5%Re ，Mo-20% Re, Mo-41% Re,Mo-44.5% Re, Mo-47.5% Re | Length: 10-350mmWidth：600mm max.Thickness: 0.2mm min. |
| Mo-Re Alloy Foil | Mo-5%Re ，Mo-20% Re, Mo-41% Re,Mo-44.5% Re, Mo-47.5% Re | Width：100mm max.Thickness: 0.04mm min. |

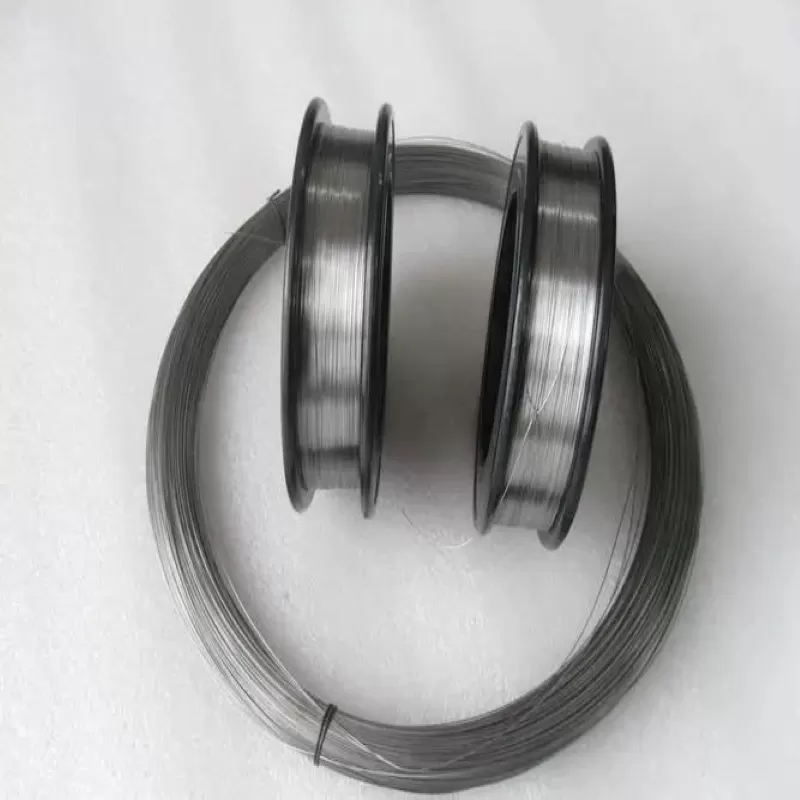

| Mo-Re Alloy Wire | Mo-5%Re ，Mo-20% Re, Mo-41% Re,Mo-44.5% Re, Mo-47.5% Re | φ:0.1mm,0.2mm,0.25mm,0.3mm,0.35mm,0.5mm |
| Mo-Re Alloy Rod | Mo-5%Re ，Mo-20% Re, Mo-41% Re,Mo-44.5% Re, Mo-47.5% Re | φ:1-17 mm |
| Mo-Re Alloy Thermo-couple | Mo-5%Re ，Mo-20% Re, Mo-41% Re,Mo-44.5% Re, Mo-47.5% Re | φ:0.1mm,0.2mm,0.25mm,0.3mm,0.35mm,0.5mm |
| Mo-Re Alloy Alloy Tube | Mo-5%Re ，Mo-20% Re, Mo-41% Re,Mo-44.5% Re, Mo-47.5% Re | Customized |
Customized dimensions and specifications were also available.
Molybdenum Rhenium Alloy (MoRe) Products
| Materials | MoRe5% | MoRe20% | MoRe41% | MoRe44.5% | MoRe47.5% | customized |
| Plate | √ | √ | √ | √ | ||
| Sheet | √ | √ | √ | √ | ||
| Strip | √ | √ | √ | √ | ||
| Rod | √ | √ | √ | √ | ||
| Sputtering Target | √ | √ | √ | √ | ||
| Tube | √ | √ | √ | √ |
Other: Spherical Molybdenum Rhenium Alloy Powder, Molybdenum Rhenium alloy crucibles, Molybdenum Rhenium alloy nuts, Molybdenum Rhenium alloy bolts, Molybdenum Rhenium alloy heating elements, and Molybdenum Rhenium alloy shielding screens.
Properties（Theoretical）
| Compound Formula | MoRe |
| Appearance | Silver metallic luster alloy foil |
| Melting Point | 2507 °C |
| Monoisotopic Mass | 284.861 g/mol |
Applications of Molybdenum Rhenium alloy Crucibles
-The addition of rhenium metal to molybdenum can improve the plasticity and increase the strength of molybdenum. mo-Re alloy can be used for
high-speed rotating X-ray tube targets
long-life grating for microwave communications
space reactor core heating tubes
high-temperature furnace heaters
high-temperature thermocouples
-Furnace
- Joining
- Aerospace industries
- Electronics etc
Packing of Molybdenum Rhenium alloy Crucibles
Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 440 gallon liquid totes Special package is available on request.
ATTs’ Molybdenum Rhenium alloy Crucibles are carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
Chemical Identifiers
| Linear Formula | Mo/Re |
| MDL Number | N/A |
| EC No. | N/A |
| Pubchem CID | 9993894 |
| IUPAC Name | molybdenum; rhenium |
| SMILES | [Mo].[Re] |
| InchI Identifier | InChI=1S/Mo.Re |
| InchI Key | NZPGFUCQQUDSQG-UHFFFAOYSA-N |
