Product Code : AL-NbZr-Nb99Zr1-CU
Niobium Zirconium Alloy has a high melting point, fine resistance to corrosion, and workability. It can be made into mill products for pharmacy, semiconductor, aviation, nuclear, etc.
As a master alloy, niobium-zirconium can be used for grain refining, hardening, and improving alloy performance by enhancing properties such as ductility and machinability. Available alloy forms include sheets and plates, discs, foils, rods, tubes, and other shapes.
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Product Information
Niobium Zirconium Alloy has a high melting point, fine resistance to corrosion, and workability. It can be made into mill products for pharmacy, semiconductor, aviation, nuclear, etc.
As a master alloy, niobium-zirconium can be used for grain refining, hardening, and improving alloy performance by enhancing properties such as ductility and machinability. Available alloy forms include sheets and plates, discs, foils, rods, tubes, and other shapes.
Synonyms
Nb:Zr 99:1, 50:50, 75:25, Nb99Zr1, NB035160, NB037350, NB037100, R4251, R4261, CAS 12059-59-5, Zircadyne 705
Niobium Zirconium Alloy Specification
Per your request or drawing
We can customized as required
Properties（Theoretical）
| Compound Formula | NbZr |

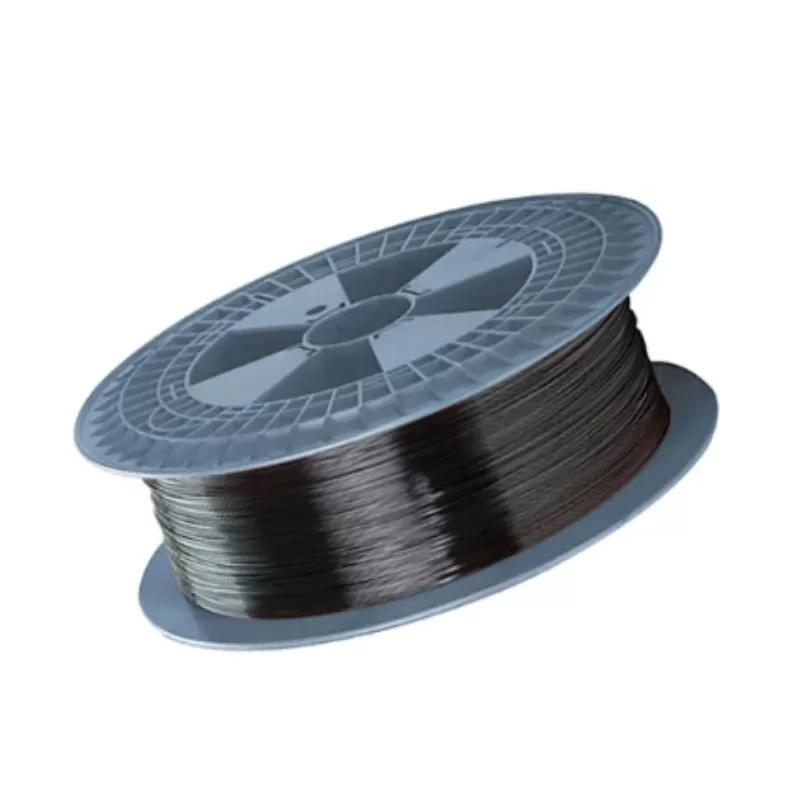

| Appearance | Metallic solid in various forms tube, sheet/plate, bar, foil, wire, rod, sputtering target |
| Melting Point | 2399 °C |
| Boiling Point | N/A |
| Density | 8.59 g/cm3 |
| Solubility in H2O | N/A |
| Tensile Strength | 330-620 MPa |
| Vickers Hardness | 65-140 |
| Monoisotopic Mass | 182.811 g/mol |
| Hardness (HV,9.8N) | ≤ 100 |
| Grain Size/G | 9 – 10 |
| Elongation/% | ≥ 20 |
Chemical Composition
| Nb1Zr Chemical Composition (wt%) | |||||||||||||
| Products | C | N | O | H | Zr | Ta | Fe | Si | W | Ni | Mo | Hf | Ti |
| Nb1Zr R04251 | 0.01 | 0.01 | 0.015 | 0.0015 | 0.8-1.2 | 0.1 | 0.005 | 0.005 | 0.03 | 0.005 | 0.01 | 0.02 | 0.02 |
| Nb1Zr R04261 | 0.01 | 0.01 | 0.025 | 0.0015 | 0.8-1.2 | 0.5 | 0.01 | 0.005 | 0.03 | 0.005 | 0.05 | 0.02 | 0.03 |
Applications of Niobium Zirconium Alloy
• Used for the manufacturing of reaction vessels.
• Used in equipment that is resistant to nitric acid, sulfuric acid, hydrochloric acid.
• Used in high pressure sodium lamp.
Nb1Zr is widely applied in atomic energy industry and high pressure sodium lamps for its small thermal neutron capture section and strong liquid metal corrosion resistances. Nb1Zr alloy can be used as internal component of the reactor and package material. The alloys of Nb1Zr can also be processed into small parts with high thermal properties, fine formability and corrosion resistance of sodium, which are applied in high-efficiency and high-strength sodium vapor streetlamps with high precision stents.
Packing of Niobium Zirconium Alloy
Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 440 gallon liquid totes Special package is available on request.
ATTs’ Niobium Zirconium Alloy is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
Chemical Identifiers
| Linear Formula | NbZr |
| MDL Number | N/A |
| EC No. | N/A |
| Pubchem CID | 71355178 |
| IUPAC Name | niobium; zirconium |
| SMILES | [Zr].[Nb] |
| InchI Identifier | InChI=1S/Nb.Zr |
| InchI Key | GFUGMBIZUXZOAF-UHFFFAOYSA-N |
