Product Code : AL-NbZr-Nb99-ST
Niobium Zirconium Alloy Sputtering Target is a silvery alloy sputtering material containing Nb and Zr. Our high-quality Niobium Zirconium Alloy Sputtering Targets & Discs are widely used in chemicals, ships, liquid crystal display (LCD) and conductive coating industry, etc.
Niobium Zirconium Alloy Ingot has a high melting point, fine resistance to corrosion, and workability. It can be made into mill products for pharmacy, semiconductor, aviation, nuclear, etc.
Linear Formula: NbZr
MDL Number: N/A
EC No.: N/A
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Product Information
Niobium Zirconium Alloy Sputtering Target is a silvery alloy sputtering material containing Nb and Zr. Our high-quality Niobium Zirconium Alloy Sputtering Targets & Discs are widely used in chemicals, ships, liquid crystal display (LCD) and conductive coating industry, etc.
Niobium Zirconium Alloy Ingot has a high melting point, fine resistance to corrosion, and workability. It can be made into mill products for pharmacy, semiconductor, aviation, nuclear, etc.
Synonyms
Nb:Zr 99:1, 50:50, 75:25, Nb99Zr1, NB035160, NB037350, NB037100, R4251, R4261, CAS 12059-59-5, Zircadyne 705
Niobium Zirconium Alloy Sputtering Targets & Discs Specification
Dimensions
Size：Circular Targets Diameter 10-400 mm Thickness 2-28
Standard：ASTM B392
R4251 (Nb-1Zr) R4261 (Nb-1Zr)
Per your request or drawing
We can customized as required
Properties（Theoretical）
Chemical Composition
| Nb1Zr Chemical Composition (wt%) | |||||||||||||
| Products | C | N | O | H | Zr | Ta | Fe | Si | W | Ni | Mo | Hf | Ti |
| Nb1Zr R04251 | 0.01 | 0.01 | 0.015 | 0.0015 | 0.8-1.2 | 0.1 | 0.005 | 0.005 | 0.03 | 0.005 | 0.01 | 0.02 | 0.02 |
| Nb1Zr R04261 | 0.01 | 0.01 | 0.025 | 0.0015 | 0.8-1.2 | 0.5 | 0.01 | 0.005 | 0.03 | 0.005 | 0.05 | 0.02 | 0.03 |
| Compound Formula | NbZr |

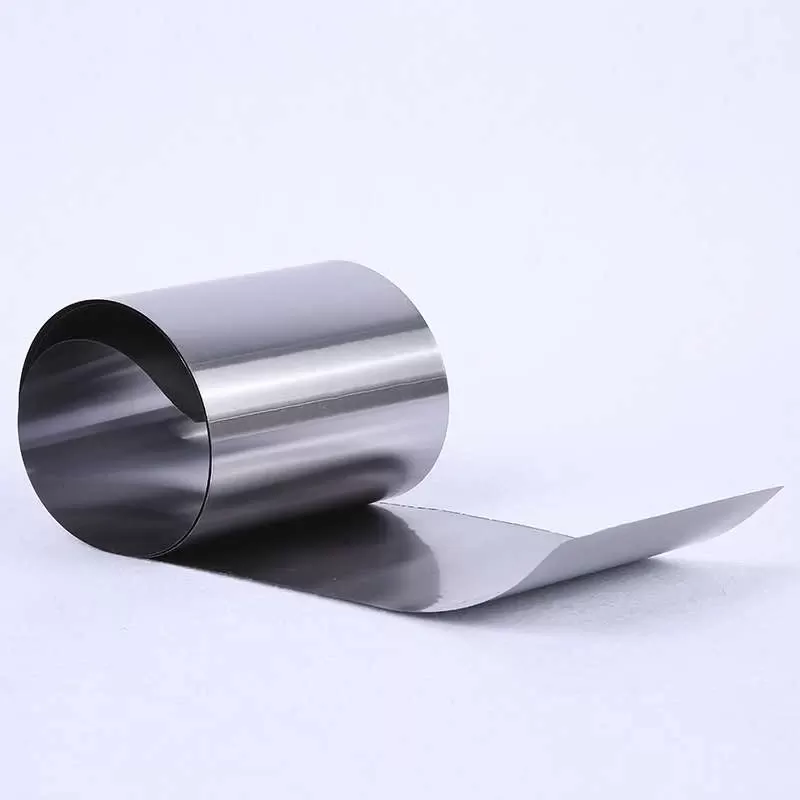

| Appearance | Metallic solid in various forms tube, sheet/plate, bar, foil, wire, rod, sputtering target |
| Melting Point | 2399 °C |
| Boiling Point | N/A |
| Density | 8.59 g/cm3 |
| Solubility in H2O | N/A |
| Tensile Strength | 330-620 MPa |
| Vickers Hardness | 65-140 |
| Monoisotopic Mass | 182.811 g/mol |
| Hardness (HV,9.8N) | ≤ 100 |
| Grain Size/G | 9 – 10 |
| Elongation/% | ≥ 20 |
| Niobium and Niobium Alloys Sheet/Foil Grade, Standard and Application | |||
| Products | USA Grade | USA Standard | Application |
| Nb1Zr | R04251 | ASTM B393 | Reactor Grade |
| Nb1Zr | R04261 | ASTM B393 | Commercial Grade |
| Nb1Zr Foil Sheet Strip and Plate Mechanical Property | ||||
| Grade | Ultimate Tensile Strength, min, psi (MPa) | Yield Strength (0.2 % offset), min, psi (MPa) | Elongation in 1-in. (25.4- mm) gage length, min, % | |
| 0.010 in. or Greater | Less Than 0.010 in. | |||
| Types 3 and 4 | 28 000 (195) | 18 000 (125) | 20 | 15 |
| Nb1Zr Rod Bar and Wire Mechanical Property | |||
| Grade | Ultimate Tensile Strength, Min, psi (MPa) | Yield Strength, psi (MPa) | Elongation min %, mm |
| Types 3 and 4 | 28 000 (195) | 18 000 (125) | 20 |
Applications of Niobium Zirconium Alloy Sputtering Targets & Discs
• Used for the manufacturing of reaction vessels.
• Used in equipment that is resistant to nitric acid, sulfuric acid, hydrochloric acid.
• Used in high pressure sodium lamp.
Nb1Zr is widely applied in atomic energy industry and high pressure sodium lamps for its small thermal neutron capture section and strong liquid metal corrosion resistances. Nb1Zr alloy can be used as internal component of the reactor and package material. The alloys of Nb1Zr can also be processed into small parts with high thermal properties, fine formability and corrosion resistance of sodium, which are applied in high-efficiency and high-strength sodium vapor streetlamps with high precision stents.
Packing of Niobium Zirconium Alloy Sputtering Targets & Discs
Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 440 gallon liquid totes Special package is available on request.
ATTs’Niobium Zirconium Alloy Sputtering Targets & Discs is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
Chemical Identifiers
| Linear Formula | NbZr |
| MDL Number | N/A |
| EC No. | N/A |
| Pubchem CID | 71355178 |
| IUPAC Name | niobium; zirconium |
| SMILES | [Zr].[Nb] |
| InchI Identifier | InChI=1S/Nb.Zr |
| InchI Key | GFUGMBIZUXZOAF-UHFFFAOYSA-N |
