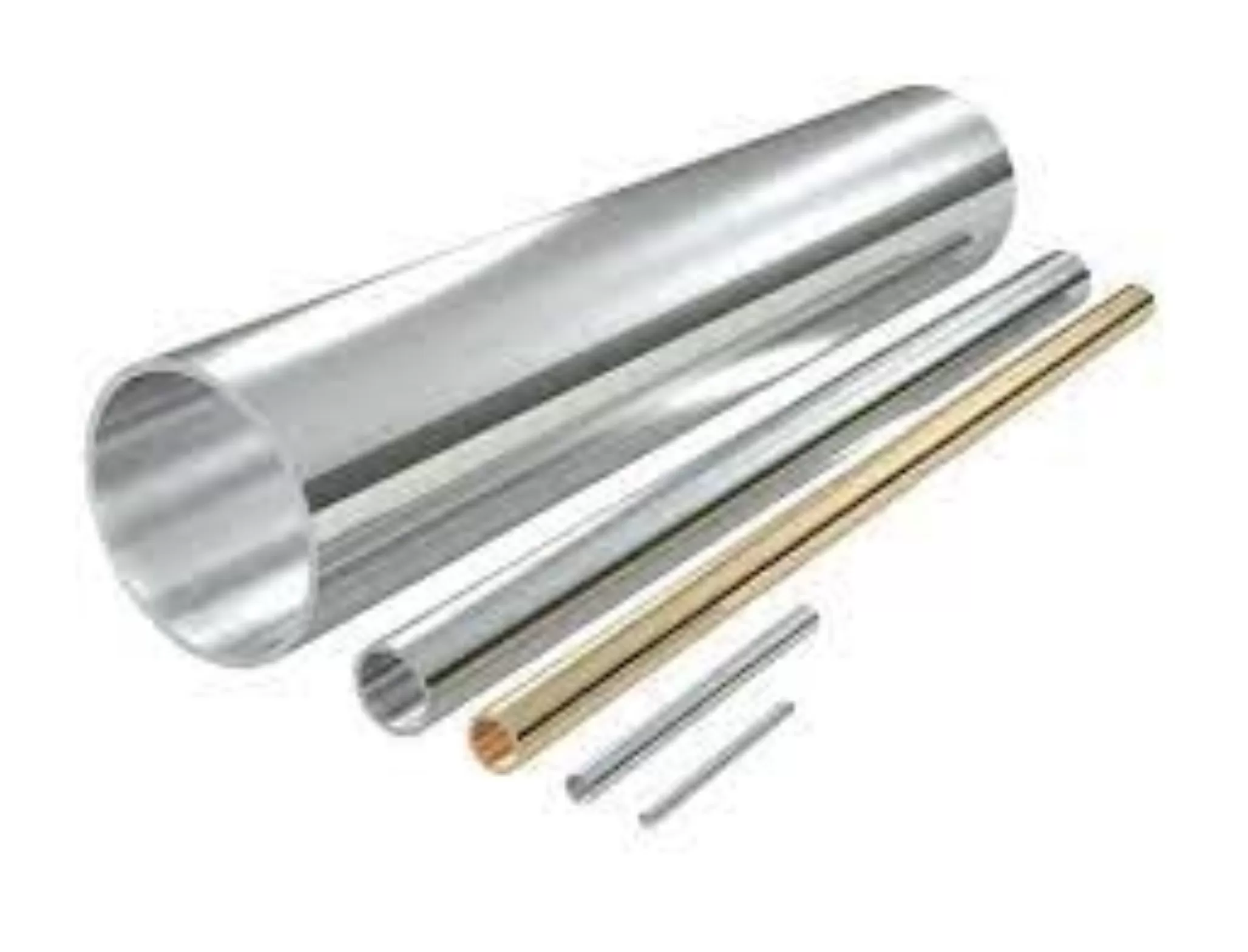

Palladium Tube (Pd Tube)

Product Code : ME-Pd-5N-TP

Palladium is a chemical element with the symbol Pd and atomic number 46. It is a rare and lustrous silvery-white metal discovered in 1803 by the English chemist William Hyde Wollaston. Palladium, platinum, rhodium, ruthenium, iridium and osmium form a group of elements referred to as the platinum group metals (PGMs). They have similar chemical properties, but palladium has the lowest melting point and is the least dense of them.

ATT specializes in supplying seamless Palladium tubing with a variety of dimensions including round, rectangular, square, and oval in numerous standard diameters from 0.02 to 6.0 inches and wall thicknesses from 0.003 to 0.500 inches. Tubing can be further processed to produce rings, washers, sleeves and sheaths. Custom configurations are also available. Materials include most metals including the rare earth metals and other advanced materials. Tubes can also be produced from custom alloys for commercial and research applications and for new proprietary technologies. Other available shapes include bar or plate form, as well as custom machined shapes and through other processes such as nanoparticles and in the form of solutions and organometallics.

We also produce Palladium as rod, pellets, powder, pieces, granules, ingot, wire, and in compound forms, such as oxide. Other shapes are available by request.

INQUIRY Next Products

Product Information

We also produce Palladium as rod, pellets, powder, pieces, granules, ingot, wire, and in compound forms, such as oxide. Other shapes are available by request.

Synonyms

GF86533230, GF35196330, GF73114657, GF06424398, GF16654765, GF99541985, GF18010088, GF39094904, GF50683631, GF01357602, GF85663109, GF01949889, GF88738026

Palladium Tube

Size：Our standard diameters from 0.02 to 6.0 inches and wall thicknesses from 0.003 to 0.500 inches.

Purity:2N(99%), 3N5(99.95%), 4N(99.99%), 5N(99.999%)

Per your request or drawing

We can customized as required

Properties（Theoretical）

Molecular Weight	106.42
Appearance	Gray Powder
Melting Point	1554 °C
Boiling Point	2970 °C
Density	12.02 g/cm³
Solubility in H2O	N/A
Electrical Resistivity	10.54 microhm-cm @ 20 °C
Electronegativity	2.2 Paulings
Heat of Vaporization	90 K-cal/gm atom at 2970 °C
Poisson's Ratio	N/A
Specific Heat	0.0584 Cal/g/K @ 25 °C
Tensile Strength	N/A
Thermal Conductivity	0.718 W/cm/K @ 298.2 K
Thermal Expansion	N/A
Vickers Hardness	N/A
Young's Modulus	N/A
Thermal emf against Pt (cold 0C - hot 100C) ( mV )	-0.57

Applications of Palladium Tube

Its main use is as a catalyst for hydrogenation. Palladium is also used within the electronics industry and in some dental applications.

Packing of Palladium Tube

Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 440 gallon liquid totes Special package is available on request.

ATTs’ Palladium Tube is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.

Chemical Identifiers

Linear Formula	Pd
CAS	7440-05-3
MDL Number	MFCD00011167
EC No.	231-115-6
Beilstein/Reaxys No.	N/A
Pubchem CID	23938
SMILES	[Pd]
InchI Identifier	InChI=1S/Pd
InchI Key	KDLHZDBZIXYQEI-UHFFFAOYSA-N

Product	Product Code	Purity	Size	Contact Us
Palladium Tube	ME-Pd-2N-TP	99%	Customize
Palladium Tube	ME-Pd-3N-TP	99.9%	Customize
Palladium Tube	ME-Pd-4N-TP	99.99%	Customize
Palladium Tube	ME-Pd-5N-TP	99.999%	Customize
