Samarium (Sm) Foil

Product Code : RE-Sm-5N-SF

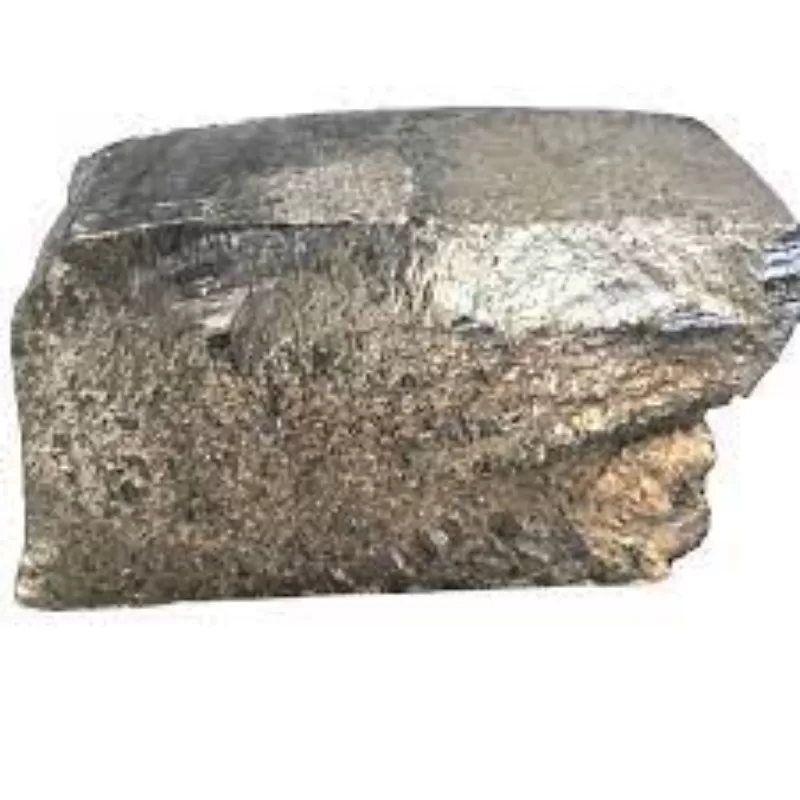

Samarium is a silvery-white metal and a member of the lanthanoid group of the Periodic Table and the 40th most abundant element within the Earth’s crust. Samarium Metal tarnishes in the air, and it is relatively hard. Its hardness and density are similar to zinc. Samarium Metal has primarily been utilized in the production of Samarium-Cobalt (Sm2Co17) permanent magnets with one of the highest known demagnetization resistance.

ATT specializes in producing Samarium High Purity Foil and sheets in many thicknesses and sizes for numerous industrial uses.

Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.

Product Product Code Purity Size Contact Us
Samarium (Sm) FoilRE-Sm-2N-SF99%Customize
Samarium (Sm) FoilRE-Sm-3N-SF99.9%Customize
Samarium (Sm) FoilRE-Sm-4N-SF99.99%Customize
Samarium (Sm) FoilRE-Sm-5N-SF99.999%Customize

Product Information

Samarium is a silvery-white metal and a member of the lanthanoid group of the Periodic Table and the 40th most abundant element within the Earth’s crust. Samarium Metal tarnishes in the air, and it is relatively hard. Its hardness and density are similar to zinc. Samarium Metal has primarily been utilized in the production of Samarium-Cobalt (Sm2Co17) permanent magnets with one of the highest known demagnetization resistance.

ATT specializes in producing Samarium High Purity Foil and sheets in many thicknesses and sizes for numerous industrial uses.

Samarium (Sm) Foil Specification

ProductSamarium sheet, Samarium foil, Samarium   disc
Thickness0.5mm - 40mm,Tolerance:±0.01mm
Width1mm - 500mm, Tolerance:±1mm
Length10mm - 500mm, Tolerance:±1mm


Per your request or drawing

We can customized as required



Properties(Theoretical)

Molecular Weight150.36
AppearanceSilvery
Melting Point1072 °C
Boiling Point1803 °C
Density7353 kg/m3
Solubility in H2ON/A
Electrical Resistivity88.0 microhm-cm @ 25 °C
Electronegativity1.2 Paulings
Heat of Fusion2.60 Cal/gm mole
Heat of Vaporization46 K-cal/gm atom at 1791 °C
Poisson's Ratio0.274
Specific Heat0.043 Cal/g/K @ 25 °C
Tensile StrengthN/A
Thermal Conductivity0.133 W/cm/K @ 298.2 K
Thermal Expansion(r.t.) ( poly) 12.7 µm/(m·K)
Vickers Hardness412 MPa
Young's Modulus(? form) 49.7 GPa


Applications of Samarium (Sm) Metal

Samarium Metal has primarily been utilized in the production of Samarium-Cobalt (Sm2Co17) permanent magnets with one of the highest resistances to demagnetization known. High purity Samarium Metal is also used in making specialty alloy and sputtering targets. Samarium-149 has a high cross-section for neutron capture (41,000 barns) and is therefore used in the control rods of nuclear reactors. Samarium Metal can be further processed to various shapes of sheets, wires, foils, slabs, rods, discs, and powder.

Samarium is used as a catalyst in certain organic reactions: the samarium iodide (SmI2) is used by organic research chemists to make synthetic versions of natural products. The oxide, samaria, is used for making special infrared adsorbing glass and cores of carbon arc-lamp electrodes and as a catalyst for the dehydration and dehydrogenation of ethanol. Its compound with cobalt (SmCo5) is used in making a new permanent magnet material.

Samarium Metal Sm is applied in petroleum and environment protection catalysts, mischmetal, polishing powders and Rare Earth fertilizers.


Packing of Samarium (Sm) Foil

Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 440 gallon liquid totes Special package is available on request.

ATTs’Samarium (Sm) Foil is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.

Chemical Identifiers

Linear FormulaSm
CAS7440-19-9
MDL NumberMFCD00011233
EC No.231-128-7
Beilstein/Reaxys No.N/A
Pubchem CID23951
SMILES[Sm]
InchI IdentifierInChI=1S/Sm
InchI KeyKZUNJOHGWZRPMI-UHFFFAOYSA-N
