Product Code : CE-SiSiC-NN-TP
Sintered Silicon Carbide SiSiC is produced at extremely high temperatures (~2,000°C) in inert atmospheres using a range of forming methodologies, including dry-pressing and extrusion. Reaction bonded, or siliconized, silicon carbide is formed using a porous carbon feedstock and molten silicon via additive forming, casting or extrusion. Each of these fully-densified silicon carbide ceramics achieves exceptional chemical and mechanical properties in extreme end-use temperatures exceeding 1,400°C (2,552°F).
ATT produces Sintered Silicon Carbide SiSiC tubes, reaction bonded SiC tubes, and recrystallized SiC tubes. tubes, Our recrystallized SiC products have high purity, while our reaction bonded and sintered silicon carbide balls have high mechanical strength. Our silicon carbide tube possesses good wearability, a low thermal expansion coefficient, extreme corrosion resistance, high hardness, and self-lubricating properties.
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Product Information
Sintered Silicon Carbide SiSiC is produced at extremely high temperatures (~2,000°C) in inert atmospheres using a range of forming methodologies, including dry-pressing and extrusion. Reaction bonded, or siliconized, silicon carbide is formed using a porous carbon feedstock and molten silicon via additive forming, casting or extrusion. Each of these fully-densified silicon carbide ceramics achieves exceptional chemical and mechanical properties in extreme end-use temperatures exceeding 1,400°C (2,552°F).
ATT produces Sintered Silicon Carbide SiSiC tubes, reaction bonded SiC tubes, and recrystallized SiC tubes. tubes, Our recrystallized SiC products have high purity, while our reaction bonded and sintered silicon carbide balls have high mechanical strength. Our silicon carbide tube possesses good wearability, a low thermal expansion coefficient, extreme corrosion resistance, high hardness, and self-lubricating properties.
Synonyms
methanidylidynesilicon; Carborundum; Silicon monocarbide; Betarundum Carborundeum; carbon silicide; Green densic
Sintered Silicon Carbide (SiSiC) Tubes Specification
Size：customized
Purity: customized
Per your request or drawing
We can customized as required
Properties（Theoretical）
| Items | Unit | RBSiC | SSiC | RSiC |
| Max. Service Temp (air) | ℃ | 1380 | 1650 | 1650 |
| Density | g/cm³ | ≥3.02 | ≥ 3.10 | 2.60-2.74 |
| Bulk Density | g/cm3 | 2.7 | 3.1 | 3 |
| Open Porosity | % | < 0.1 | 0 | 15 |
| Bending Strength | Mpa | 250 （20℃ ） | 380 | 100 |
| Mpa | 280 (1200 ℃) | 370 | 120 | |
| Modulus of Elasticity | Gpa | 330 （20℃ ） | 350 | 240 |
| Gpa | 300 (1200 ℃) | 300 | 200 | |
| Thermal Conductivity | W/m.k | 40 (1200 ℃) | 35 | 10 |
| Coefficient of Thermal Expansion | K -1 × 10-6 | 4.5 | 4.2 | 4.8 |
| HV0.5 | 2200 | 2500 | / | |
| Appearance Porosity | 0.1 | 2.5 | <15% | |
| SiC Content | % | 85 | 98 | 98.5 |
| Si Content | % | 15 | 0 | 0 |
| Compressive strength | MPa | 2100 | 2200 | >300 |
| Flexural strength | MPa | 110 | 400 | 380 |
| Acid Alkaline-proof | General | Excellent | Superior | |
| Main characteristics | Chemical Resistance | Fracture Toughness | High temp. High resistance. High purity |
Corrosion test results in liquids
Test Environment mg/cm2 yr）* Corrosive Weight Loss
| （wt%）Conc. Reagent | Temp. (˚C) | Sintering SiC (NO Free S i) | Reaction Bonded SiC (12%Si) | Tungsten Carbide (6% Co) | Aluminum Oxide (99%) |
| 98%H2SO4 | 100 | 1.8 | 55.0 | ＞1000 | 65.0 |
| 50%NaOH | 100 | 2.5 | ＞1000 | 5.0 | 75.0 |
| 53%HF | 25 | <0.2 | 7.9 | 8.0 | 20.0 |
| 85%H 3 PO 4 | 100 | <0.2 | 8.8 | 55.0 | ＞1000 |
| 70%HNO 3 | 100 | <0.2 | 0.5 | ＞1000 | 7.0 |
| 45%KOH | 100 | <0.2 | ＞1000 | 3.0 | 60.0 |
| 25%HCl | 70 | <0.2 | 0.9 | 85.0 | 72.0 |
| 10%HF plus NO 3 | 25 | <0.2 | ＞1000 | ＞1000 | 16.0 |
Test Time:125 to 300 hours of submersive testing, continuously stirred.
Corrosion Weight Loss Guide:
>1000 mg/cm2 yr Completely destroyed within days.
100 to 999 mg/cm2 yr Not recommended for servicegreater than a month
50 to 100 mg/cm2 yr Not recommended for servicegreater than one year
10 to 49 mg/cm2 yr Caution recommended, basedon the specific application.
0.3 to 9.9 mg/cm2 yr Recommended for long term service
<2mg/cm2 y Recommended for long term service; no corrosion, other than as a result of surface cleaning, was evidenced.
Applications of Silicon Carbide Tube
– A promising substitute for traditional semiconductors such as silicon in high-temperature applications.
-Grinding wheels and abrasive paper and cloth products
-High-temperature bricks and other refractories
-Abrasive and cutting tools
-Structural material
-Automobile parts
-Electronic circuit elements
-Thin filament pyrometry
-Catalyst support
Packing of Silicon Carbide Tube

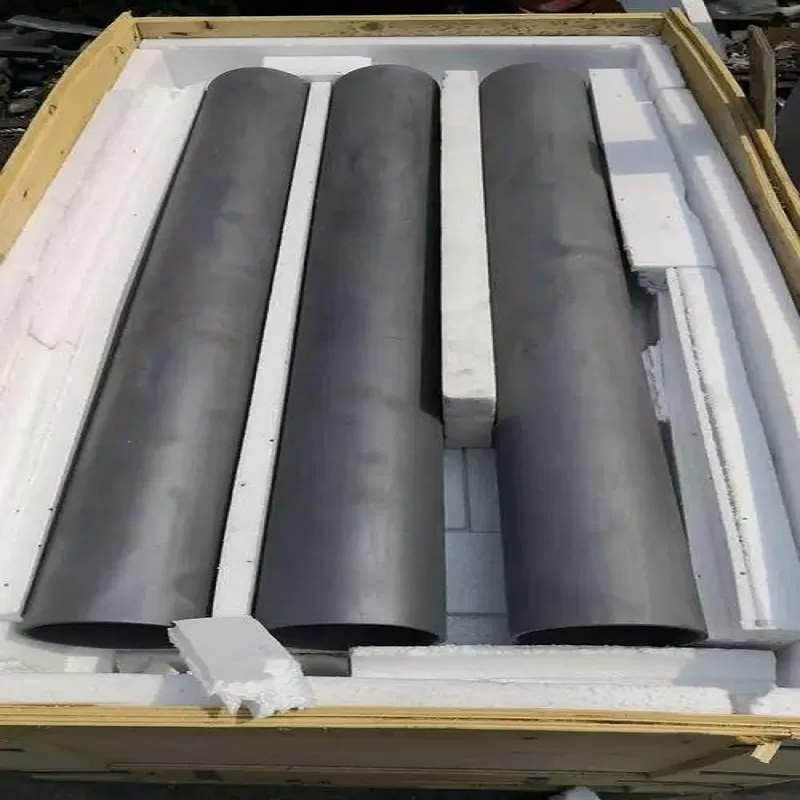

Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 440 gallon liquid totes Special package is available on request.
ATTs’ Silicon Carbide Tube is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
Chemical Identifiers
| Linear Formula | SiC |
| CAS | 409-21-2 |
| MDL Number | MFCD00049531 |
| EC No. | 206-991-8 |
| Beilstein/Reaxys No. | N/A |
| Pubchem CID | 9863 |
| IUPAC Name | methanidylidynesilicon |
| SMILES | [C-]#[Si+] |
| InchI Identifier | InChI=1S/CSi/c1-2 |
| InchI Key | HBMJWWWQQXIZIP-UHFFFAOYSA-N |
