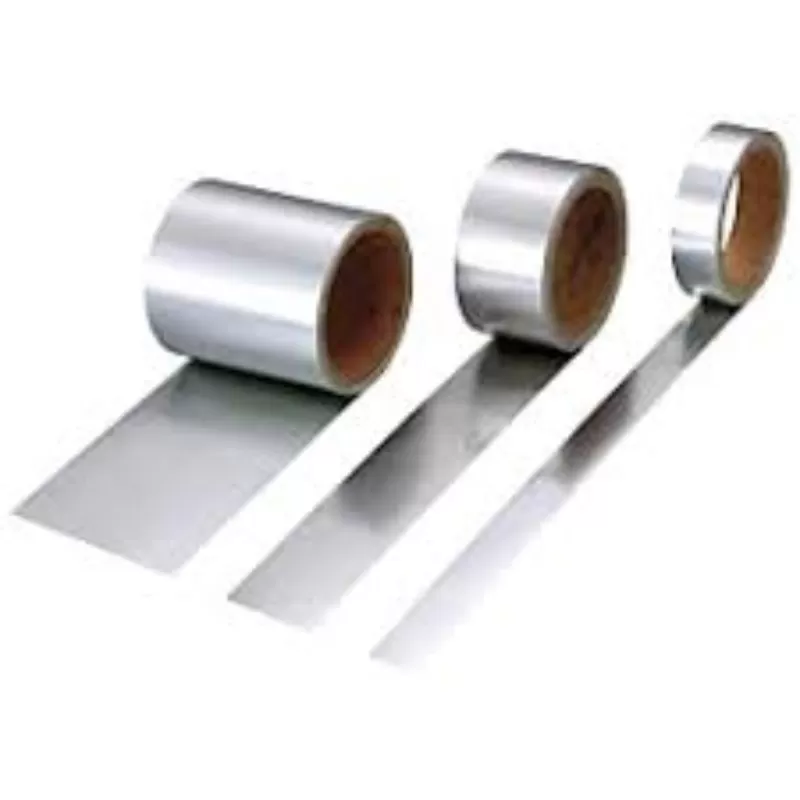

Product Code : ME-Sr-5N-BC
ATT specializes in the production of high purity strontium foils and sheets of various thicknesses and sizes, and provides health and occupational safety information for this product. Most foils are produced from ingots for coating and thin film chemical vapor deposition (CVD) and physical vapor deposition (PVD) processes, including thermal and electron beam (E-Beam) evaporation, low temperature organic evaporation, atomic layer deposition (ALD), organometall and chemical vapor deposition (MOCVD) for specific applications such as fuel cells and solar energy. All metals range in thickness from 0.003 "to about 2mm. Some metals can also be rolled as thin as 0.001 "and are used as evaporation sources for microelectronics, optical, magnetic, MEMS, and hard-resistant coatings. Sheet size up to a maximum width of approximately 7 ". For film deposition on a glass or metal substrate, a maximum length of about 20" can be obtained, with a nominal thickness between about 0.005" and 0.020". Materials are produced by ultra-high purification processes such as crystallization, solid state and sublimation. ATT specializes in the production of custom compositions for commercial and research applications as well as new proprietary technologies. ATT also casts any rare earth metal and most other advanced materials into bars, rods or plates, and other mechanical shapes, and in solution and organometrics through other processes such as nanoparticles. Other shapes are available upon request.
ATT is a professional supplier of strontium foils, and we also manufacture tablets, balls, ingots, balls, flakes, powders, rods, threads, sputtering targets, and many other forms and custom shapes. Other shapes are available upon request.
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Product Information
ATT specializes in the production of high purity strontium foils and sheets of various thicknesses and sizes, and provides health and occupational safety information for this product. Most foils are produced from ingots for coating and thin film chemical vapor deposition (CVD) and physical vapor deposition (PVD) processes, including thermal and electron beam (E-Beam) evaporation, low temperature organic evaporation, atomic layer deposition (ALD), organometall and chemical vapor deposition (MOCVD) for specific applications such as fuel cells and solar energy. All metals range in thickness from 0.003 "to about 2mm. Some metals can also be rolled as thin as 0.001 "and are used as evaporation sources for microelectronics, optical, magnetic, MEMS, and hard-resistant coatings. Sheet size up to a maximum width of approximately 7 ". For film deposition on a glass or metal substrate, a maximum length of about 20" can be obtained, with a nominal thickness between about 0.005" and 0.020". Materials are produced by ultra-high purification processes such as crystallization, solid state and sublimation. ATT specializes in the production of custom compositions for commercial and research applications as well as new proprietary technologies. ATT also casts any rare earth metal and most other advanced materials into bars, rods or plates, and other mechanical shapes, and in solution and organometrics through other processes such as nanoparticles. Other shapes are available upon request.
ATT is a professional supplier of strontium foils, and we also manufacture tablets, balls, ingots, balls, flakes, powders, rods, threads, sputtering targets, and many other forms and custom shapes. Other shapes are available upon request.
Synonyms
Strontium Foil Properties (Theoretical)
| Molecular Weight | 87.62 |
| Appearance | solid |
| Melting Point | 769 °C |
| Boiling Point | 1384 °C |
| Density | 2.54 g/cm3 |
| Solubility in H2O | N/A |
| Electrical Resistivity | 23.0 microhm-cm @ 20 |
| Electronegativity | 1.0 Paulings |
| Heat of Fusion | 0.295Cal/gm mole |
| Heat of Vaporization | 33.8K-Cal/gm atom at 1384 °C |
| Poisson's Ratio | 0.28 |
| Specific Heat | 0.0719Cal/g/K @ 25 °C |
| Tensile Strength | N/A |
| Thermal Conductivity | 0.354W/cm/K @ 298.2 K |
| Thermal Expansion | 22.5 µm·m-1·K-1 (25 °C) |
| Vickers Hardness | N/A |
| Young's Modulus | 15.7 GPa |
Applications of Strontium Foil
A soft, silvery metal that burns in air and reacts with water. Strontium is best known for the brilliant reds its salts give to fireworks and flares. It is also used in producing ferrite magnets and refining zinc. Modern 'glow-in-the-dark' paints and plastics contain strontium aluminate.
Packing of Strontium Foil
Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L)s quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 440 gallon liquid totes Special package is available on request.
ATTs’Strontium Foil is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
Chemical Identifiers
| Linear Formula | Sr |
| MDL Number | MFCD00134060 |
| EC No. | 231-133-4 |
| Beilstein/Reaxys No. | N/A |
| Pubchem CID | 5359327 |
| SMILES | [Sr] |
| InchI Identifier | InChI=1S/Sr |
| InchI Key | CIOAGBVUUVVLOB-UHFFFAOYSA-N |
