Product Code : AL-WRe-WRe30%-SF
W-Re alloy is an alloy of tungsten and rhenium. One type of the alloy is low rhenium alloy with rhenium under 5%, the other is high rhenium alloy with rhenium of 20% ~ 30%. Rhenium is a rare metal, scarce and expensive.
The phenomenon that rhenium can improve the strength of the tungsten, molybdenum, chromium and plastic is called "rhenium effect". Adding a small amount (3% ~ 5%) of rhenium increases the starting temperature of tungsten recrystallization by 300 ℃ ~ 500 ℃. W - Re and Mo - Re alloy have good high temperature strength and plasticity, they can be processed into targets, plates, wires and rods used in aerospace, aviation high temperature structure (nozzle, thermal protective screen, etc.), elastic components and electronic components.
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Product Information
W-Re alloy is an alloy of tungsten and rhenium. One type of the alloy is low rhenium alloy with rhenium under 5%, the other is high rhenium alloy with rhenium of 20% ~ 30%. Rhenium is a rare metal, scarce and expensive.
The phenomenon that rhenium can improve the strength of the tungsten, molybdenum, chromium and plastic is called "rhenium effect". Adding a small amount (3% ~ 5%) of rhenium increases the starting temperature of tungsten recrystallization by 300 ℃ ~ 500 ℃. W - Re and Mo - Re alloy have good high temperature strength and plasticity, they can be processed into targets, plates, wires and rods used in aerospace, aviation high temperature structure (nozzle, thermal protective screen, etc.), elastic components and electronic components.
Tungsten Rhenium Alloy Synonyms
75W25Re, 75W-25Re, W-25, W97Re3, ASM W-10

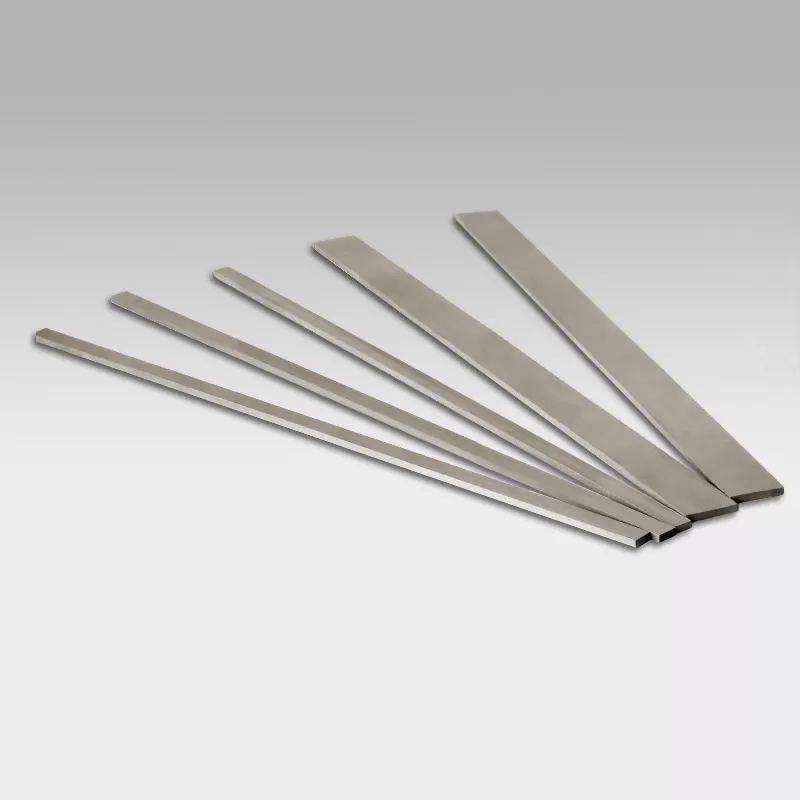

Tungsten Rhenium Alloy Strip Specification
Per your request or drawing
We can customized as required
Tungsten Rhenium Alloy (WRe) Products
| Materials | WRe3% | WRe5% | ,WRe25% | WRe26% | customized |
| Plate | √ | √ | √ | √ | |
| Sheet | √ | √ | √ | √ | |
| Strip | √ | √ | √ | √ | |
| Rod | √ | √ | √ | √ | |
| Sputtering Target | √ | √ | √ | √ | |
| Tube | √ | √ | √ | √ |
Other: Spherical Tungsten Rhenium Alloy Powder, Tungsten Rhenium alloy crucibles, Tungsten Rhenium alloy nuts, Tungsten Rhenium alloy bolts, Tungsten Rhenium alloy heating elements, and Tungsten Rhenium alloy shielding screens.
Properties（Theoretical）
| Compound Formula | WRe |
| Molecular Weight | 370.04 |
| Appearance | Gray metallic solid in various forms |
| Melting Point | 3400 °C |
| Boiling Point | 5660 °C |
| Density | 19.7 g/cm3 |
| Solubility in H2O | N/A |
| Tensile Strength | 1310-2100 MPa |
| Thermal Expansion | 4.48 x 10-6K-1 |
| Exact Mass | 370.906684 |
| Monoisotopic Mass | 370.906684 |
Applications of Tungsten Rhenium Alloy Strip
- Microwave communication
- Thermocouple
- Furnace
- Joining
- Aerospace industries
Packing of Tungsten Rhenium Alloy Strip
Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 440 gallon liquid totes Special package is available on request.
ATTs’Tungsten Rhenium Alloy Strip is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
Chemical Identifiers
| Linear Formula | WRe |
| CAS | 12299-18-2 |
| MDL Number | MFCD02091751 |
| EC No. | N/A |
| Beilstein/Reaxys No. | N/A |
| Pubchem CID | 25252736 |
| IUPAC Name | rhenium; tungsten |
| SMILES | [W].[Re] |
| InchI Identifier | InChI=1S/Re.W |
| InchI Key | DECCZIUVGMLHKQ-UHFFFAOYSA-N |
