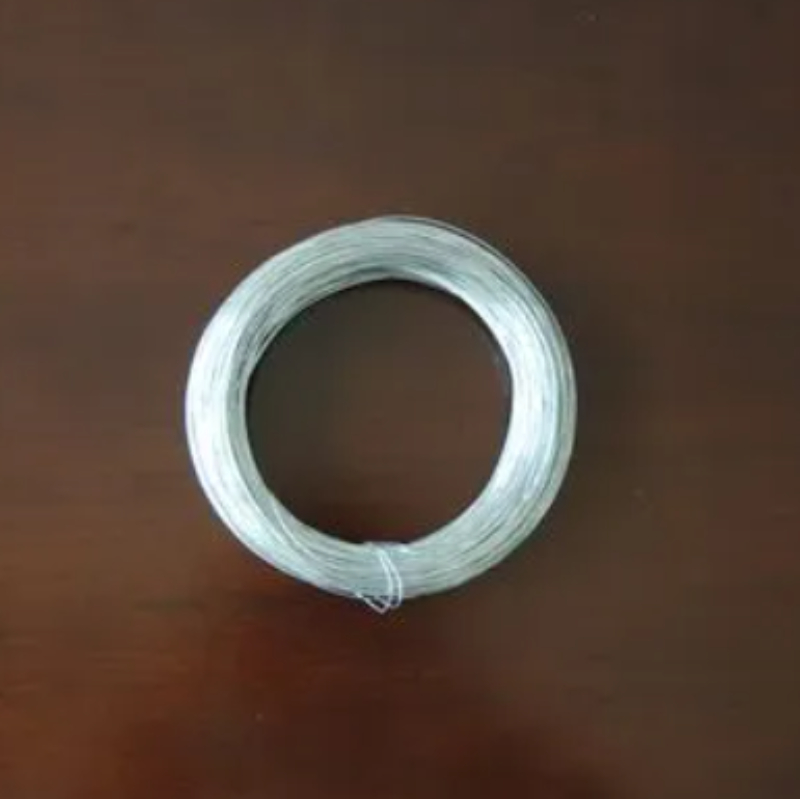

Tungsten Silver Alloy Wire

Product Code : AL-AgW-W50% Ag50%-WI

Tungsten silver alloy is a kind of two-phase structure pseudo alloy mainly composed of tungsten and silver. Because the physical properties of silver and tungsten are quite different, it can’t be produced by melting and casting. Instead, it is usually obtained by powder alloy technology. The technological process includes batching, mixing, pressing, sintering, melting, and cold working.

Tungsten silver alloy combines the advantages of metal tungsten and silver, among which tungsten has high melting point (tungsten point is 3410°C) and high density (tungsten density is 19.34 g/m3), while silver has excellent conductivity and thermal conductivity. Tungsten silver alloy (composition generally ranges from wcu7 to wcu50) has uniform microstructure, high temperature resistance, high strength, arc erosion resistance and high density.

Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.

Product Product Code Purity Size Contact Us
Tungsten Silver Alloy Wire AL-AgW-W50% Ag50%-WI W50% Ag50% Customize
Tungsten Silver Alloy Wire AL-AgW-W90% Ag10%-WI W90% Ag10% Customize

Product Information

Tungsten silver alloy is a kind of two-phase structure pseudo alloy mainly composed of tungsten and silver. Because the physical properties of silver and tungsten are quite different, it can’t be produced by melting and casting. Instead, it is usually obtained by powder alloy technology. The technological process includes batching, mixing, pressing, sintering, melting, and cold working.

Tungsten silver alloy combines the advantages of metal tungsten and silver, among which tungsten has high melting point (tungsten point is 3410°C) and high density (tungsten density is 19.34 g/m3), while silver has excellent conductivity and thermal conductivity. Tungsten silver alloy (composition generally ranges from wcu7 to wcu50) has uniform microstructure, high temperature resistance, high strength, arc erosion resistance and high density.

Compared with W-Cu alloy, W-Ag alloy has better conductivity, plasticity and oxidation resistance, but lower strength and hardness, and higher price.

ATT is a professional supplier of high-purity Tungsten Silver Alloy Wire. We also produce disc, granules, ingot, pellets, pieces, powder , rod, wire, sputtering target and in numerous other forms and custom shapes. Other shapes are available by request.


Tungsten Silver Alloy Synonyms

Silver tungsten composite, Elkonite, AgW50, AgW55, AgW60, AgW65, AgW70, Ag75, AgW80, AgW90

Tungsten Silver Alloy Wire Specification

Per your request or drawing

We can customized as required


Properties(Theoretical)

Compound FormulaAgW
AppearanceSilvery-gray metallic solid in various   forms such as sheets and plates, bars, discs, foils, rods, tubes, ingots
Melting PointVaries by composition
Boiling PointN/A
DensityVaries by composition
Solubility in H2ON/A


Silver Tungsten Alloy Properties

GradeAg
  %
Total Impurities
  %
  (≤)
W
  %
Density
  g/cm3
  (≥)
Hardness
  HRB
  (≥)
Resistivity
  μΩ·cm
  (≤)
Conductivity
  IACS/%
  (≥)
Bending Strength
  Mpa
  (≥)
AgW3070±1.50.5Bal.11.75752.375
AgW4060±1.50.5Bal.12.4852.666
AgW5050±1.50.5Bal.13.15105357
AgW5545±1.50.5Bal.13.551153.254
AgW6040±1.50.5Bal.141253.451
AgW6535±1.50.5Bal.14.51353.648
AgW7030±1.50.5Bal.14.91503.845657
AgW7525±1.50.5Bal.15.41654.241686
AgW8020±1.50.5Bal.16.11804.637726


Process of Tungsten Silver Alloy Wire

Dosing – Mixture powder – Pressing – Sintering – Polishing – Inspection.


Advantage of Tungsten Silver Alloy Wire

1. High conductivity, high hardness
2. High heat conductivity
3. Wear resistance, resistance to the burning of the arc


Applications of Tungsten Silver Alloy Wire

Tungsten Silver Alloy Wire is widely used in high temperature resistant materials, electrical alloy for high voltage switch, electrical processing electrode, microelectronic materials. As spare parts and components, it is widely used in aerospace, aviation, electronics, power, metallurgy, machinery, sports equipment and other industries.


Packing of Tungsten Silver Alloy Wire

Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 440 gallon liquid totes Special package is available on request.

ATTs’Tungsten Silver Alloy Wire is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.

Chemical Identifiers

Linear FormulaW-Ag
MDL NumberN/A
EC No.N/A
Pubchem CID57470393
IUPAC Namesilver; tungsten
SMILES[Ag].[W]
InchI IdentifierInChI=1S/Ag.W
InchI KeyITZSSQVGDYUHQM-UHFFFAOYSA-N
