Product Code : RE-Yb2O3-5N-PO

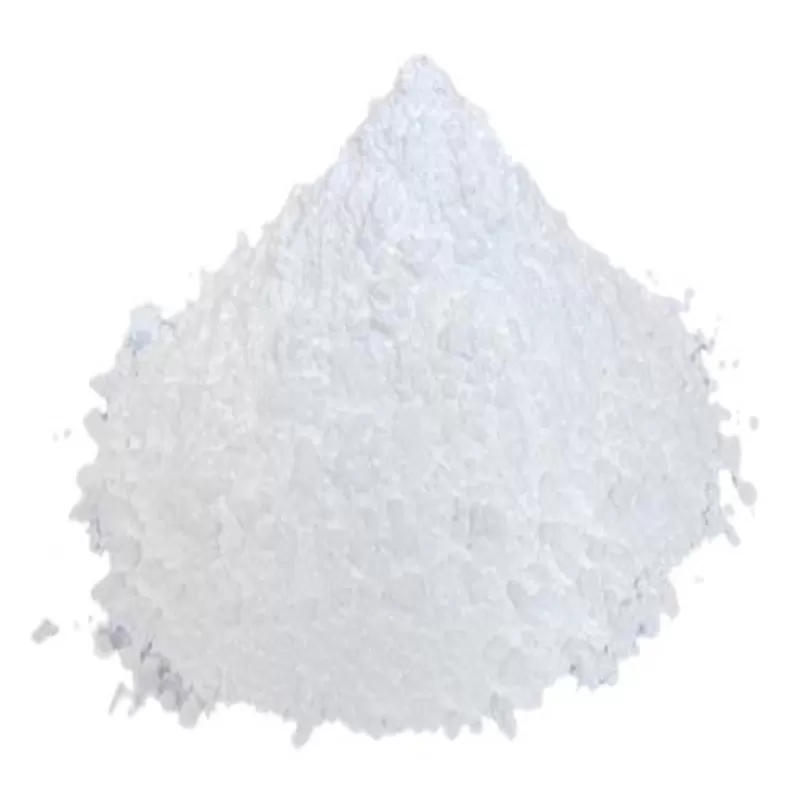

Ytterbium Oxide Powder (Yb2O3 Powder) is white powder. Ytterbium Oxide, also called Ytterbia, It is insoluble in water and cold acid, but soluble in hot dilute acid. It is used to make special alloys, ceramic dielectric, industrial luminous carbon rods, special glass and catalysts, etc, Ytterbium, atomic no. 70, symbol Yb, weight at 173.04, is being applied to numerous fiber amplifier and fiber optic technologies and in various lasing applications.
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
Product | Product Code | Purity | Size | Contact Us |
Product Information
Ytterbium Oxide Powder (Yb2O3 Powder) is white powder. Ytterbium Oxide, also called Ytterbia, It is insoluble in water and cold acid, but soluble in hot dilute acid. It is used to make special alloys, ceramic dielectric, industrial luminous carbon rods, special glass and catalysts, etc, Ytterbium, atomic no. 70, symbol Yb, weight at 173.04, is being applied to numerous fiber amplifier and fiber optic technologies and in various lasing applications. It has a single dominant absorption band at 985 in the infra-red making it useful in silicon photocells to directly convert radiant energy to electricity. an activator in phosphor in calculator bubble domain and electronic industry etc.Ytterbium Oxide is is not hazardous. High purity Ytterbium Oxide are widely applied as a doping agent for garnet crystals in lasers a important colourant in glasses and porcelain enamel glazes. As Ytterbium Oxide has a significantly higher emissivity in the infrared range than Magnesium Oxide, a higher radiant intensity is obtained with Ytterbium-based payloads in comparison to those commonly based on Magnesium/Teflon/Viton (MTV)
Synonyms
yttria powder (Y2O3), yttrium oxide powder (Y2O3), yttrium(III) oxide, diyttrium trioxide, yttrium sesquioxide, CAS# 1314-36-9,
Ytterbia, Ytterbium monoxide, Diytterbium trioxide oxide, Ytterbium (III) oxide, Oxygen(-2) anion; ytterbium(+3) cation, Ytterbium(III) oxide, Oxoytterbium
Ytterbium Oxide (Yb2O3) Powder Specifications
Chemical Composition
Grade | 6N | 5N | 4N | 3N |
Yb2O3 /TREO (% min.) | 99.9999 | 99.999 | 99.99 | 99.9 |
TREO (% min.) | 99.9 | 99 | 99 | 99 |
Loss On Ignition (% max.) | 0.5 | 0.5 | 1 | 1 |
Rare Earth Impurities | ppm max. | ppm max. | ppm max. | % max. |
Tb4O7/TREO Dy2O3/TREO Ho2O3/TREO Er2O3/TREO Tm2O3/TREO Lu2O3/TREO Y2O3/TREO | 0.1 0.1 0.1 0.5 0.5 0.5 0.1 | 1 1 1 5 5 1 3 | 5 5 10 25 30 50 10 | 0.005 0.005 0.005 0.01 0.01 0.05 0.005 |
Non-Rare Earth Impurities | ppm max. | ppm max. | ppm max. | % max. |
Fe2O3 SiO2 CaO Cl- NiO ZnO PbO | 1 10 10 30 1 1 1 | 3 15 15 100 2 3 2 | 5 50 100 300 5 10 5 | 0.002 0.01 0.02 0.05 0.001 0.001 0.001 |
* Special requirements are available.
Physical Properties – Ytterbium Oxide (Yb2O3) Powder
Appearance Form | Powder |
Color | White |
Melting Point | 2346°C |
Boiling Point | 4070°C |
Molecular Weight | 394.08 |
Melting Point | 4,271° F (2,355° C) |
Boiling Point | 7,358° F (4,070° C) |
Density | 9200 kg/m3 |
Solubility in H2O | N/A |
Exact Mass | 189.934 g/mol |
Monoisotopic Mass | 395.862544 Da |
Solubility in water | Insoluble |
Crystal structure | Cubic |
Ytterbium Oxide (Yb2O3) Powder Application
Ytterbium Oxide Powder is used as the fluorescent powder, optical glass additive and electronic industry. It is mainly used in manufacturing computer magnetic bubble material, which makes the magnetic bubble reservoir have the characteristics of high speed, large capacity, small volume and multi-function; It is also used in manufacturing special alloy, dielectric ceramics and special glass, etc. applied to numerous fiber amplifier and fiber optic technologies, High purity Ytterbium Oxide are widely applied as a doping agent for garnet crystals in lasers an important colorant in glasses and porcelain enamel glazes. As Ytterbium Oxide has a significantly higher emissivity in the infrared range than Magnesium Oxide, higher radiant intensity is obtained with Ytterbium-based payloads in comparison to those commonly based on Magnesium/Teflon/Viton (MTV). Coating crucibles, tuyeres and nozzles for improved resistance to molten titanium and metals prepared by rapid solidification.
Ytterbium Oxide (Yb2O3) Packing
Standard Packing: Packed in Bags. Packed in Drums.
Special package is available on request.
Ytterbium Oxide (Yb2O3) is clearly tagged and labeled externally to ensure efficient identification and quality control. Great care is taken to avoid any damage which might be caused during storage or transportation.
Chemical Identifiers
Linear Formula | Yb2O3 |
CAS | 1314-37-0 |
MDL Number | MFCD00011290 |
EC No. | 215-234-0 |
Beilstein/Reaxys No. | N/A |
Pubchem CID | 4124403 |
IUPAC Name | Oxoytterbium |
SMILES | [Yb+3].[Yb+3].[O-2].[O-2].[O-2] |
InchI Identifier | InChI=1S/3O.2Yb/q3*-2;2*+3 |
InchI Key | UZLYXNNZYFBAQO-UHFFFAOYSA-N |
