Product Code : RE-MgY-5N-RB
Magnesium Yttrium Master Alloy Sheet is a casting alloy used as an additive for magnesium alloy material processing.
The common alloy ratio is 20-70% magnesium, and the ratio can also be customized. The magnesium-based master alloy has a uniform and stable composition, which can meet the requirements of magnesium alloy composition, microstructure regulation, and performance improvement. MagnesiumYttrium (Mg-Y) Master Alloy master alloys are also available in the shot, screened and sized to specification and in bagged shot.
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Product Information

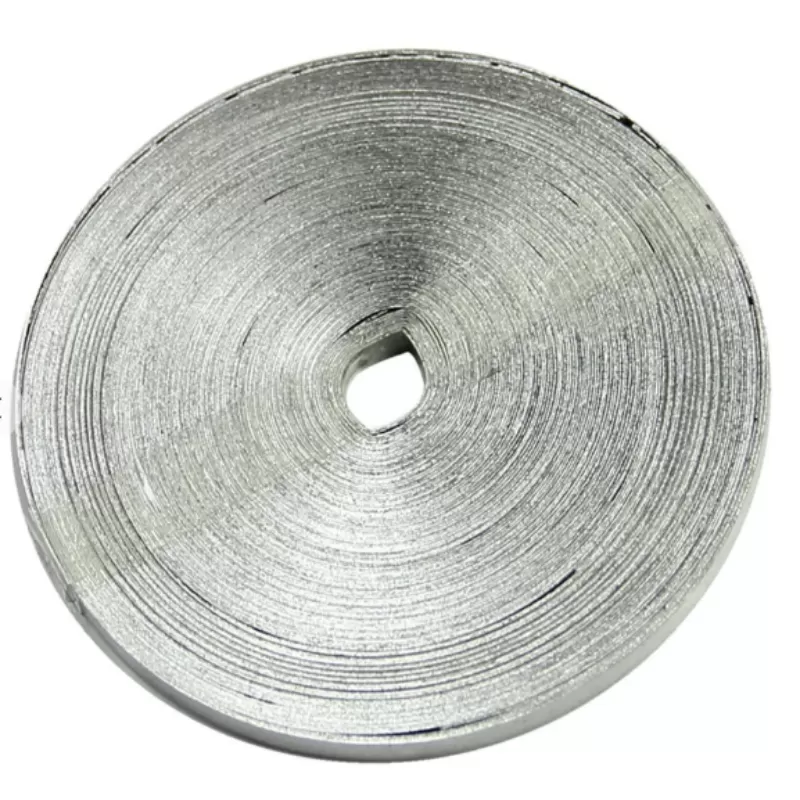

Magnesium Yttrium Master Alloy Ribbon is a casting alloy used as an additive for magnesium alloy material processing.
The common alloy ratio is 20-70% magnesium, and the ratio can also be customized. The magnesium-based master alloy has a uniform and stable composition, which can meet the requirements of magnesium alloy composition, microstructure regulation, and performance improvement. MagnesiumYttrium (Mg-Y) Master Alloy master alloys are also available in the shot, screened and sized to specification and in bagged shot.
Magnesium Yttrium Alloy Synonyms
Magnesium-yttrium, Mg-Y, magnesium rare earth alloy, yttrium-doped magnesium alloy, CAS 12032-45-0, MgY20, MgY25, MgY30, magnesium-yttrium master alloy, YMg
Magnesium Yttrium Master Alloy Ribbon Specification
Purity: 99% - 99.999%
Per your request or drawing
We can customized as required
Properties（Theoretical）
| Compound Formula | MgY |
| Appearance | Gray metallic solid in various forms such as sheets, discs, foils, rods, tubes, ingots |
| Melting Point | 570 °C (1060 °F) |
| Boiling Point | N/A |
| Density | 2.1 g/cm3 |
| Solubility in H2O | N/A |
| Poisson's Ratio | 0.29 |
| Specific Heat | 940 J/kg-K |
| Tensile Strength | 250 to 270 MPa (Ultimate)/ 160 to 170 MPa (Yield) |
| Thermal Conductivity | 0.51 W/m-K |
| Thermal Expansion | 27 µm/m-K |
| Young's Modulus | 44 GPa |
| Monoisotopic Mass | 112.891 g/mol |
Magnesium Yttrium Master Alloy Ribbon Application
Mg-Y series alloys: Rare earth element Y is one of the elements with the best strengthening effect, the most widely used, and the most in-depth research in magnesium alloys. Y has a high solid solubility in magnesium solid solution, the equilibrium solid solubility is 3.75% (atomic fraction)/12.47% (mass fraction) (566℃), and its solid solubility decreases exponentially with the decrease of temperature. Small, which means that the Mg-Y alloy is a typical magnesium alloy that can be precipitation strengthened by complete heat treatment.
Packing of Magnesium Yttrium Master Alloy Ribbon
Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 440 gallon liquid totes Special package is available on request.
ATTs’Magnesium Yttrium Master Alloy Ribbon is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
Chemical Identifiers
| Linear Formula | Mg-Y |
| MDL Number | N/A |
| EC No. | N/A |
| Pubchem CID | 57465337 |
| IUPAC Name | magnesium; yttrium |
| SMILES | [Mg].[Y] |
| InchI Identifier | InChI=1S/Mg.Y |
| InchI Key | MIOQWPPQVGUZFD-UHFFFAOYSA-N |
