Product Code : ME-Zn-5N-TA

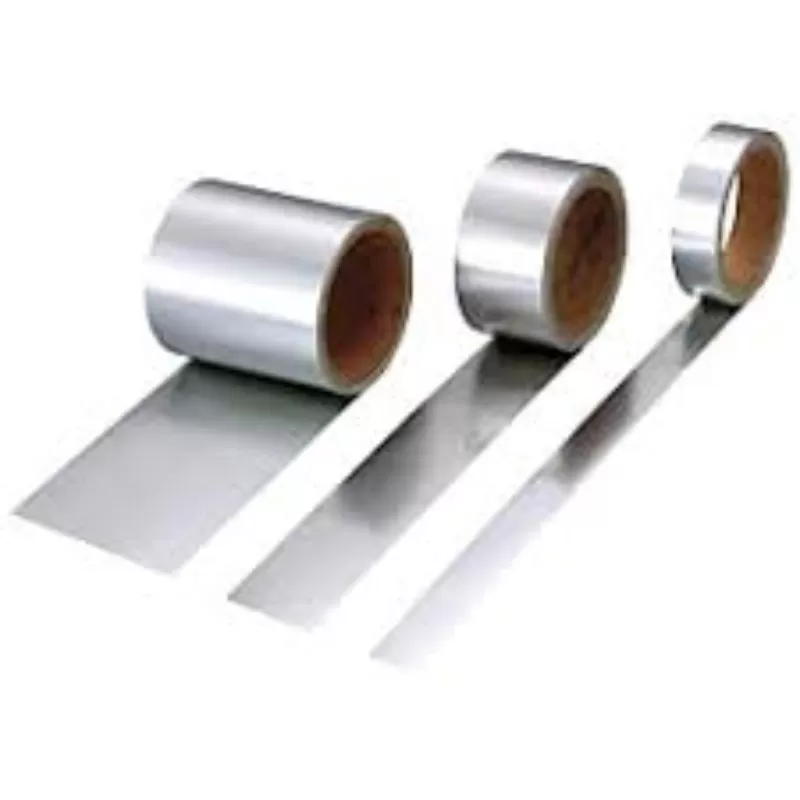

Zinc strips are often used as a strong, lightweight outer coating. In addition, tape can act as an adhesive to hold two objects together. ATT specializes in the production of zinc high purity tapes and sheets in a variety of thicknesses and sizes for a variety of industrial uses and provides health and occupational safety information for this product. Most tapes are produced from ingots for coating and film chemical vapor deposition (CVD) and physical vapor deposition (PVD) processes, including thermal and electron beam (E-Beam) evaporation, low temperature organic evaporation, atomic layer deposition (ALD), organometallic and chemical vapor deposition (MOCVD) for specific applications such as fuel cells and solar energy. The zinc strip is usually in the form of a long and thin metallic zinc strip rolled. All metals range in thickness from 0.003 "to about 2mm. Some metals can also be rolled as thin as 0.001 "and are used as evaporation sources for microelectronics, optical, magnetic, MEMS, and hard-resistant coatings. Sheet size up to a maximum width of approximately 7 ". For film deposition on a glass or metal substrate, a maximum length of about 20" can be obtained, with a nominal thickness between about 0.005" and 0.020". Materials are produced by ultra-high purification processes such as crystallization, solid state and sublimation. ATT specializes in the production of custom compositions for commercial and research applications as well as new proprietary technologies. ATT also casts any rare earth metal and most other advanced materials into bars, rods or plates, and other mechanical shapes, and in solution and organometrics through other processes such as nanoparticles. Zinc strips are used as protective coatings on a variety of materials. Tape is also used for packaging applications.
ATT is a professional supplier of zinc strips, and we also manufacture plates, balls, ingots, balls, flakes, powders, rods, wires, sputtering targets, and many other forms and custom shapes. Other shapes are available upon request.
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Product Information
Zinc strips are often used as a strong, lightweight outer coating. In addition, tape can act as an adhesive to hold two objects together. ATT specializes in the production of zinc high purity tapes and sheets in a variety of thicknesses and sizes for a variety of industrial uses and provides health and occupational safety information for this product. Most tapes are produced from ingots for coating and film chemical vapor deposition (CVD) and physical vapor deposition (PVD) processes, including thermal and electron beam (E-Beam) evaporation, low temperature organic evaporation, atomic layer deposition (ALD), organometallic and chemical vapor deposition (MOCVD) for specific applications such as fuel cells and solar energy. The zinc strip is usually in the form of a long and thin metallic zinc strip rolled. All metals range in thickness from 0.003 "to about 2mm. Some metals can also be rolled as thin as 0.001 "and are used as evaporation sources for microelectronics, optical, magnetic, MEMS, and hard-resistant coatings. Sheet size up to a maximum width of approximately 7 ". For film deposition on a glass or metal substrate, a maximum length of about 20" can be obtained, with a nominal thickness between about 0.005" and 0.020". Materials are produced by ultra-high purification processes such as crystallization, solid state and sublimation. ATT specializes in the production of custom compositions for commercial and research applications as well as new proprietary technologies. ATT also casts any rare earth metal and most other advanced materials into bars, rods or plates, and other mechanical shapes, and in solution and organometrics through other processes such as nanoparticles. Zinc strips are used as protective coatings on a variety of materials. Tape is also used for packaging applications.
ATT is a professional supplier of zinc strips, and we also manufacture plates, balls, ingots, balls, flakes, powders, rods, wires, sputtering targets, and many other forms and custom shapes. Other shapes are available upon request.
Synonyms
Zinc Tape Properties (Theoretical)
| Molecular Weight | 65.38 |
| Appearance | Shiny silvery-grey metal |
| Melting Point | 420 °C |
| Boiling Point | 907 °C |
| Density | 7.14 g/cm3 (20 °C) |
| Solubility in H2O | N/A |
| Electrical Resistivity | 59.0 nΩ·m (20 °C) |
| Electronegativity | 1.65 Paulings |
| Heat of Fusion | 7.32 kJ/mol |
| Heat of Vaporization | 115 kJ/mol |
| Poisson's Ratio | 0.25 |
| Specific Heat | 0.39 J/g·°C (25 °C) |
| Thermal Conductivity | 116 W/(m·K) |
| Thermal Expansion | 30.2 µm/(m·K) (25 °C) |
| Young's Modulus | 108 GPa |
Applications of Zinc Tape
Zinc oxide tape is suitable for professional athletes, hikers, sports lovers, physiotherapists and countless more. Due to its antiseptic and stabilising properties, it is commonly used to assist in wound healing, joint stabilisation, prevent injuries and limit bruises and blisters.
Packing of Zinc Tape
Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L)s quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 440 gallon liquid totes Special package is available on request.
ATTs’Zinc Tape is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
Chemical Identifiers
| Linear Formula | Zn |
| MDL Number | MFCD00011291 |
| EC No. | 231-175-3 |
| Beilstein/Reaxys No. | N/A |
| Pubchem CID | 23994 |
| SMILES | [Zn] |
| InchI Identifier | InChI=1S/Zn |
| InchI Key | HCHKCACWOHOZIP-UHFFFAOYSA-N |
