Product Code :

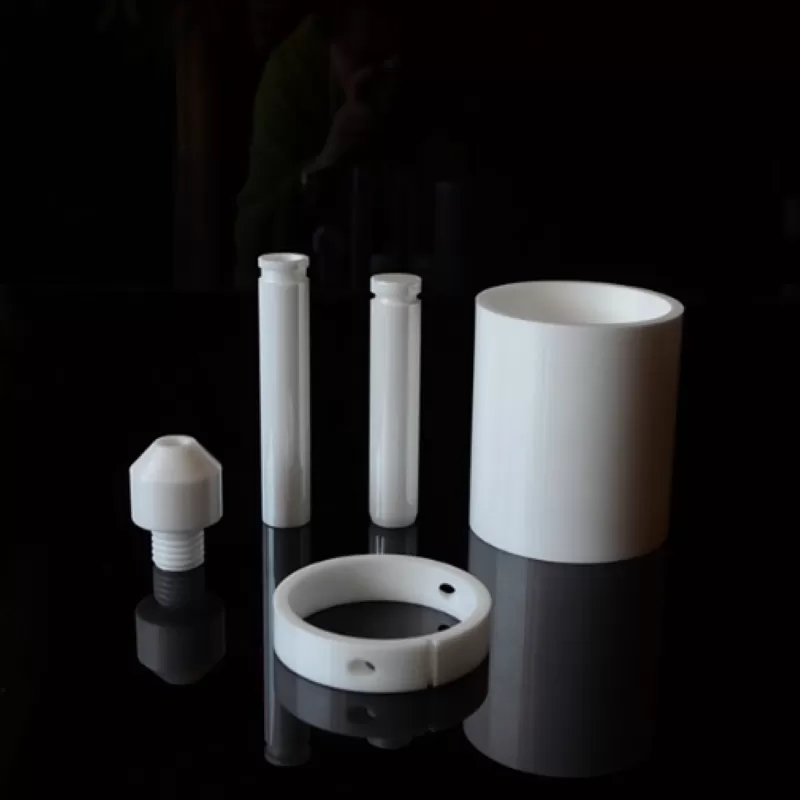

Yttria Stabilized Zirconia (YTZP) is the strongest ceramic material we offer. YTZP is a purely tetragonal phase, fine grain material. This material offers the highest flexural strength of all Zirconia based materials. YTZP exhibits a trait called transformation toughening which allows it to resist crack propagation. Applied stress, magnified by the stress concentration at a crack tip, can cause the tetragonal phase to convert to monoclinic, with the associated volume expansion. This phase transformation can then put the crack into compression, retarding its growth, and enhancing the fracture toughness. This mechanism significantly extends the reliability and lifetime of products made with stabilized zirconia. YTZP is well suited to replacing metals due to its extremely high strength and toughness, it also offers far higher resistance to chemicals and superior erosion resistance.
Zirconia Ceramic can be used as Jar (Yttria Stabilized Zirconia crucible) cause of the following properties High strength, high fracture toughness, high hardness and high density, stability, wear resistance, corrosion resistance, high temperature resistance.
Zirconia (ZrO2) crucibles are great refractory and insulating containers. They have a clean melt at temperatures above 1900°C and above and are specially manufactured for melting superalloys and precious metals. They also have excellent chemical inertness, superior thermal shock resistance to temperatures reaching up to 2200°C, and good corrosion resistance to acids and alkalis.
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
Product Information
Yttria Stabilized Zirconia (YTZP) is the strongest ceramic material we offer. YTZP is a purely tetragonal phase, fine grain material. This material offers the highest flexural strength of all Zirconia based materials. YTZP exhibits a trait called transformation toughening which allows it to resist crack propagation. Applied stress, magnified by the stress concentration at a crack tip, can cause the tetragonal phase to convert to monoclinic, with the associated volume expansion. This phase transformation can then put the crack into compression, retarding its growth, and enhancing the fracture toughness. This mechanism significantly extends the reliability and lifetime of products made with stabilized zirconia. YTZP is well suited to replacing metals due to its extremely high strength and toughness, it also offers far higher resistance to chemicals and superior erosion resistance.
Zirconia Ceramic can be used as Jar (Yttria Stabilized Zirconia crucible) cause of the following properties High strength, high fracture toughness, high hardness and high density, stability, wear resistance, corrosion resistance, high temperature resistance.
Zirconia (ZrO2) crucibles are great refractory and insulating containers. They have a clean melt at temperatures above 1900°C and above and are specially manufactured for melting superalloys and precious metals. They also have excellent chemical inertness, superior thermal shock resistance to temperatures reaching up to 2200°C, and good corrosion resistance to acids and alkalis.
Synonyms
YSZ; Yttria-stabilized zirconium oxide; Yttrium-stabilized zirconia; Zirconium(IV) oxide-yttria stabilized ; Zirconia, yttrium-stabilized; Zirconium oxide, yttrium-stabilized; YSZ-8; YSZ-3; 308076-80-4; 114168-16-0; 113482-02-3
Yttria Stabilized Zirconia Crucible Specifications
Dimensions
Per your request or drawing
We can customized as required
Properties（Theoretical）
| Performance | Unit | Typical value |
| Density | g/cm3 | >6.0 |
| Color | Ivory | |
| Young's Modulus | GPa | 200 |
| HV Hardness | Kg/mm2 | >1300 |
| Poisson's Ratio | -- | 0.3 |
| * Maximum Temperature (Inert) | °C | 1000 |
| Compressive Strength | MPa | 5500 |
| Flexural Strength | MPa | 1250 |
| Modulus of Elasticity | Gpa | 200 |
| Thermal Conductivity | W/(m.k) | 3(20-400℃) |
| Thermal Expansivity Cofficient | 10^-6K^-1 | 9.6 |
| Facture Toughness | Mpa.m0.5 | 8 |
| Grain Size | um | 0.5 |
| Property | ASTM Method | Units | MSZ (Magnesia Stabilized) | YTZP (Yttria Stabilized) | YTZP (Yttria Stabilized) | YTZP (Yttria Stabilized) | CSZ (Ceria Stabilized) | |
| General | Crystal Size (Average) | Thin Section | Microns | 30 | 1 | 1 | 1 | 3 |
| Color | -- | -- | Ivory Or Yellow | Ivory | Ivory | Ivory | Yellow | |
| Gas Permeability | -- | Atms-Cc/Sec | Gas Tight <10-10 | Gas Tight <10-10 | Gas Tight <10-10 | Gas Tight <10-10 | Gas Tight <10-10 | |
| Water Absorption | C 20-97 | % | 0 | 0 | 0 | 0 | ||
| Mechanical | Density | C 20-97 | G/Cc | 5.72 | 6.02 | 6.05 | 6.07 | 6.2 |
| Hardness | Vickers 500gm | GPa (Kg/Mm2) | 11.7 (1200) | 12.5 (1250) | 12.5 (1250) | 12.5 (1250) | 11.7 (1200) | |
| Hardness | -- | R45N | 78 | 80 | 80 | 80 | 78 | |
| Fracture Toughness | Notched Beam | MPam1/2 | 12 | 8 | 8 | 8 | 12 | |
| Flexural Strength (MOR) | F417-87 | MPa (Psi X 103 | 620 (90) | 951 (138) | 1200 | 1380 (200) | 551 (80) | |
| (3 Point) @ RT | ||||||||
| Tensile Strength @ RT | -- | MPa (Psi X 103) | 310 (45) | 550 (80) | -- | 690 (100) | 337 (49) | |
| Compressive Strength @ RT | -- | MPa (Psi X 103) | 1862 (270) | 2000 (290) | 2000 (290) | 2000 (290) | 2000 (290) | |
| Elastic Modulus | C848 | GPa (Psi X 106) | 206 (29.8) | 210 (30) | 210 (30) | 210 (30) | 200 (29) | |
| Poisson's Ratio | C848 | -- | 0.28 | 0.3 | 0.3 | 0.3 | 0.25 | |
| Thermal | C.T.E. 25 - 100° C | C 372-96 | X 10-6/C | 8.9 | 6.9 | 6.9 | 6.9 | 6.9 |
| C.T.E. 25 - 300° C | C 372-96 | X 10-6/C | 9.7 | 8.2 | 8.2 | 8.2 | 8.1 | |
| C.T.E. 25 - 600° C | C 372-96 | X 10-6/C | 10 | 10.6 | 10.6 | 10.6 | 10.5 | |
| Thermal Conductivity @ RT | C 408 | W/M K | 3 | 2 | 2 | 2 | 3.5 | |
| Max Use Temp | -- | Fahrenheit (°F) | 2200 | 932 | 932 | 932 | 1000 | |
| -- | Celsius (°C) | 1200 | 500 | 500 | 500 | 537 | ||
| Maximum Temperature (Inert) | -- | Celsius (°C) | 1500 | 1000 | 1000 | 1000 | 1155 | |
| Electrical | Dielectric Strength (.125" Thick) | D 149-97A | V/Mil | 300 | 240 | 240 | 250 | |
| Dielectric Constant @ 1 MHz | D 150-98 | -- | 22.7 | 30 | 30 | 30 | 30 | |
| Dielectric Constant | D 2520-95 | -- | 29.2 | -- | -- | -- | -- | |
| @ Gigahertz | D 2520-95 | -- | 6.2 | -- | -- | -- | ||
| Dielectric Loss @ 1 MHz | D 150-98 | -- | 0.0016 | 0.001 | 0.001 | 0.001 | 0.001 | |
| Dielectric Loss | D 2520-95 | -- | 0.0018 | -- | -- | -- | -- | |
| @ Gigahertz | D 2520-95 | -- | 6.2 | -- | -- | -- | -- | |
| Volume Resistivity, 25°C | D 257 | Ohms-Cm | > 1 X 1013 | > 1 X 1013 | > 1 X 1013 | > 1 X 1013 | > 1 X 1013 | |
| Volume Resistivity, 300°C | D 1829 | Ohms-Cm | 5 X 107 | 1 X 1010 | 1 X 1010 | 1 X 1010 | 1 X 1010 | |
| Volume Resistivity, 500°C | D 1829 | Ohms-Cm | 1 X 107 | 1 X 106 | 1 X 106 | 1 X 106 | 1 X 106 | |
| Volume Resistivity, 700°C | D 1829 | Ohms-Cm | 2 X 106 | 5 X 103 | 5 X 103 | 5 X 103 | 5 X 103 |
· Magnesia Stabilized Zirconia (MSZ) – magnesia stabilized; for high-temperature applications; it is not vulnerable to phase transformations at elevated temperatures; heterogeneous microstructure to protect against grain boundary sliding; transformation toughened; high fracture toughness
· Yttria Stabilized Zirconia (YTZP) – yttria stabilized; fine-grained microstructure predominantly tetragonal phase; extremely high strength and toughness; use temperatures below 500°C; transformation toughened to resist crack propagation; superior chemical resistance; excellent wear resistance
· Ceria Stabilized Zirconia (CSZ) – ceria stabilized high temperature, as well as high or low pH environments; transformation toughened; maintains strength in steam and pressure conditions; ceria fills crystal structure vacancies to prevent low temperature degradation
· Zirconia Toughened Alumina (ZTA) – zirconia toughened alumina; provides 20-30% greater strength than alumina at a lower cost than stabilized zirconias. Transformation toughened; Higher toughness, hardness and wear resistance than alumina
Advantages
- Very High Mechanical Strength
- High Impact Resistance
- Very High Wear Resistance
- Very High Erosion Resistance
- Very Low Thermal Conductivity
- High Chemical Resistance (Acids/Bases)
- High Corrosion Resistance
Zirconia Machining
Zirconia can be machined in green, biscuit, or fully dense states. While in the green or biscuit form, it can be machined relatively easily into complex geometries. However, the sintering process that is required to fully densify the material causes the zirconia body to shrink approximately 20%. This shrinkage means that it is impossible to hold very tight tolerances when machining zirconia pre-sintering. In order to achieve very tight tolerances, the fully sintered material must be machined/ground with diamond tools. In this manufacturing process, a very precise diamond coated tool/wheel is used to abrade away the material until the desired form is created. Due to the inherent toughness and hardness of the material, this can be a time consuming and costly process.
Applications of Yttria Stabilized Zirconia Crucible
–two types of them are divided as follows:
Refractory grade zirconia crucible, Density: 4.5g/cc, has micropores inside, also named a semi-ceramic crucible. It exhibits corrosion resistance performance of zirconia, is stable in the oxidizing and reducing atmosphere, and it is very resistant to many solutions and slag. At the same time, it has the thermal shock resistance of refractory materials, which greatly improves the change of temperature gradient during use, and is widely used in the smelting of platinum and other rare precious metals. Three main size of this type: 250ml, 5.0mmOD x 8.0mm H, 6.8mmOD x 4.0mm H. The last one is used as a thermal analysis crucible; it solves the analysis for materials that will react with alumina crucible at a high temperature
Ceramic grade zirconia crucible, density: 6.0g/cc, fully densified, and no pores. High-purity ceramic zirconia crucible is white, it will show yellow or grey if the purity is lower. It has stable chemical properties, except for sulfuric acid and hydrogen sulfuric acid, it has good stability to other acids, alkalis and alkali melts, glass melts and molten metals, low thermal conductivity, good thermal stability, and high temperature creep. The thermal conductivity is low, and the coefficient of thermal expansion is close to that of metal materials. It is an important structural ceramic material.
Zirconium Oxide Crucibles deliver cleaner melts at temperatures up to 1900°C and beyond. They are engineered for the melting of superalloys and precious metals and deliver heat-up and cool-down schedules that keep your foundry productive. They are widely used in:
Yttria Stabilized Zirconia / YSZ grinding jars are used to grind materials into extremely fine powder for use in mineral dressing processes, paints, pyrotechnics, ceramics, and selective laser sintering. –Zirconia jars and Zirconia balls are strong and have good abrasion resistance, which prevents mixing with other impurities while ball mill grinding.
Deep Well, Down Hole Components
Thread And Wire Guides
Thermal Barrier Coatings
Structural Ceramics
Wear Parts
Cutting Tools (Knives, Blades, Shears)
Fiber Optic Ferrules And Sleeves
Oxygen Sensors
Precision Ball Valve, Balls And Seats
Rollers And Guide For Metal Tube Forming
Hot Metal Extrusion Dies
Solid Oxide Fuel Cell Components
Packing of Yttria Stabilized Zirconia Crucible
Standard Packing:
Sealed bags in carton boxes. Special package is available on request.
As a ceramic material, YSZ is quite fragile in a lot of cases. The YSZ Crucible are usually held in plastic bags by vacuum, and protected with heavy foam.
ATTs’ YSZ Crucible is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
Chemical Identifiers
| Linear Formula | Y2O3 / ZrO2 |
| MDL Number | N/A |
| EC No. | N/A |
Chemical Identifiers
| Linear Formula | ZrO2 |
| MDL Number | MFCD00011310 |
| EC No. | 215-227-2 |
| Beilstein/Reaxys No. | N/A |
| Pubchem CID | 62395 |
| IUPAC Name | Dioxozirconium |
| SMILES | O=[Zr]=O |
| InchI Identifier | InChI=1S/2O.Zr |
| InchI Key | MCMNRKCIXSYSNV-UHFFFAOYSA-N |
